10 Best Fireplace Safety Pilot Kits

Review Analysis Conclusion

Based on analysis of 451 reviews spread across ten products, several patterns stand out. OEM-style pilot assemblies (the Hiorucet 4021-736, Heatilator 25660 / 4021-732, and 446-510A) earn the strongest praise for exact fitment and clean pilot flames on the specific fireplaces they target. The MENSI propane burner assembly and Skytech AF-LMF/R remote kit stand out for review volume—141 and 102 reviews respectively—giving them the broadest base of real-world feedback in the lineup. Smaller-count items, particularly the Rasmussen variable flame kit (2 reviews) and the 446-510A Heat-N-Glo assembly (3 reviews), are rated highly by the owners who have installed them, but the limited sample size means their rankings rest on a narrower foundation. Across the field, owners consistently call out exact part-number matchups, easy thermocouple hookups, and steady blue pilot flames as the deciding factors, while recurring complaints cluster around pilot dropout and ambiguous cross-brand compatibility. Confidence is highest for the top four products, where review volume and rating stability align; for the bottom of the list, treat the scores as a starting point and verify dimensional and electrical compatibility with your specific appliance before ordering.

Buying Guide

Choosing among the best fireplace safety pilot kits means matching the kit to your appliance, your fuel, and the way you actually use the fireplace. The list above covers a wide range—from OEM replacements sized for specific Heatilator and Heat-N-Glo units to high-BTU standalone kits and remote-controlled valve systems. Use the guidance below to narrow the field before you commit.

Sizing and Capacity

Start with the BTU rating of your burner or gas log set. A pilot kit rated well below the burner’s output can starve the flame or fail to hold under full load, while an oversized valve may not modulate cleanly at low settings. If you run a large vented log set in the 80,000–90,000 BTU range, look for a kit that is explicitly rated for that capacity. For standard inserts and smaller burners, most mid-range pilot assemblies will perform well, but always confirm the orifice size and valve specification match what your manufacturer calls for.

Physical dimensions matter just as much as capacity. Measure the depth and width inside your firebox or appliance cabinet before ordering. Rear-inlet designs, like the Copreci SPK-85 layout, can save critical inches in shallow enclosures. Verify thermocouple and pilot tubing lengths as well; too short forces strained connections, too long invites kinks or contact with hot surfaces.

Fuel Type and Compatibility

Before anything else, confirm whether your appliance runs on natural gas or propane. Some kits are dual-fuel compatible, while others use an orifice and spring set tuned for a single fuel. Converting between fuels almost always requires a manufacturer-approved conversion kit, not just an orifice swap. If you are replacing an existing pilot, photograph the old part and record every stamped number on the valve, thermocouple, and pilot bracket. OEM-style assemblies built for Heatilator or Heat-N-Glo are engineered to match specific clearances and thread pitches, which reduces leak risk and pilot drift.

Feature Tradeoffs

The lineup splits into three broad categories:

• Manual standing pilots: the simplest and often the most reliable, with fewer electronic components to fail. Ideal for homeowners who want a basic safety flame that stays lit through the heating season.
• Manual safety pilots with variable flame: add flame-height control without adjusting logs. Useful in mild weather, but the added mechanical complexity can introduce more points of wear.
• Remote-controlled systems: offer the greatest convenience, letting you start or modulate the fire from across the room. The tradeoff is higher price and the need to keep remote batteries fresh.

If reliability is the priority over convenience, a manual kit with a heat shield and a quality thermocouple is usually the smarter long-term choice.

Installation and Setup Considerations

A typical installation involves threading the valve into the burner pan, routing the thermocouple into the pilot bracket, and connecting the pilot tubing to the gas supply. A heat shield, included on several top-ranked kits, is not optional in tight enclosures; it shields the valve body from radiant heat that can degrade seals over time. If you are not comfortable working with gas connections, hire a licensed technician—even a small leak at a pilot tubing fitting can create a hazardous accumulation of gas inside the firebox.

Maintenance and Reliability Signals

Once installed, schedule a quick annual check before the heating season:

1. Clean the pilot orifice to remove dust and spider webs, the most common cause of weak or yellow flames.
2. Inspect the thermocouple tip for carbon buildup or corrosion; a failing thermocouple drops its millivolt output and shuts down the main burner even when the pilot appears lit.
3. Verify the pilot flame pattern—a strong, steady blue cone hugging the thermocouple tip is what you want.

Reliability signals worth watching for in product listings: brass or stainless valve bodies rather than lightweight alloys, kits that bundle both a thermocouple and a thermopile (thermocouple for safety shutoff, thermopile for the millivolts that power remotes and wall switches), and thick pilot tubing paired with robust ignitor electrodes.

How to Compare Reviews

When reading customer feedback, focus on fitment and flame stability rather than star count alone. A four-star review that confirms exact part-number compatibility with a specific fireplace model is more useful than a five-star review with no model mentioned. Recurring complaints about pilot dropout usually indicate an undersized thermocouple or loose manufacturing tolerances; repeated praise for easy hookup and a strong blue flame suggests consistent quality control.

Also pay attention to review dates. Older reviews may reflect a previous manufacturing run, while a cluster of recent positive feedback confirms the current batch is performing well. For products with very few reviews, treat perfect ratings cautiously—a single flawless installation does not guarantee broad compatibility.

Best For / Avoid If

• Best for direct OEM replacement on Heatilator units: the Hiorucet 4021-736 and the Heatilator 25660 / 4021-732.

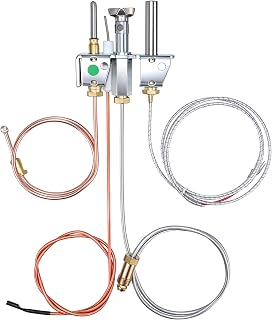

• Best for Heat-N-Glo and Royal installations: the 446-510A pilot assembly.
• Best for high-BTU vented log sets up to 90,000 BTU: the dedicated standalone safety pilot kit with a non-whistle flex line.
• Best for propane fire pits and custom burners: the MENSI M8x1 assembly with copper tube connections.
• Best for remote convenience on vented log sets: the Skytech AF-LMF/R or Rasmussen variable flame kit.
• Best dual-fuel manual value: the safety pilot control system with heat shield.
• Avoid if your appliance requires an electronic ignition module—these kits are standing-pilot designs, not intermittent-pilot or hot-surface ignition systems.

Comparison Table

Common Mistakes

• Skipping the part-number check. Even kits that look identical can use different orifice sizes or thread pitches.
• Forcing a fuel conversion without a manufacturer-approved kit. Swapping an orifice alone changes the air-fuel ratio and produces an unsafe flame.
• Routing pilot tubing where it touches hot surfaces. Use the included clips or brackets and respect bend radii.
• Reusing an old thermocouple with a new valve. Mismatched millivolt output is a common cause of nuisance shutoffs.
• Ignoring clearance around a heat shield. Crowding the valve body defeats the purpose of the shield.

FAQ

Do these kits work with both natural gas and propane? Some are explicitly dual-fuel, others are factory-tuned for one fuel only. Always verify the listing before ordering, and use a proper conversion kit if you change fuels.

Can I install a safety pilot kit myself? If you are comfortable with gas connections and local codes allow homeowner installation, yes. Otherwise, hire a licensed technician—the price is small compared with the risk of a slow leak.

Why does my pilot keep going out? The most common causes are a dirty pilot orifice, a weak thermocouple that cannot hold the valve open, or a draft in the firebox. Clean the orifice first, then test the thermocouple millivolt output.

How long do these kits typically last? With annual cleaning and an undamaged thermocouple, a quality brass-bodied kit can serve for many heating seasons. Thermocouples and pilot tubing are the most likely replacement items over time.

Will a remote kit work with my existing millivolt valve? Most remote kits, including the Skytech AF-LMF/R, are designed to sit in line with a millivolt gas valve. Confirm that your current valve is millivolt-compatible before adding a remote receiver.

Final Recommendation

For a direct replacement on a Heatilator or Heat-N-Glo fireplace, the Hiorucet 4021-736 and the 446-510A pilot assembly deliver the closest OEM fitment. For a complete standalone installation on a high-BTU vented log set, the 90,000 BTU safety pilot kit offers dedicated capacity without bundled extras. DIYers working with propane fire pits or custom burners should look at the MENSI assembly for its high review volume and straightforward tubing connections. If remote convenience is the priority and your appliance supports it, the Skytech or Rasmussen variable flame kits are worth the upgrade. For a simple, reliable manual setup that covers both natural gas and propane, the dual-fuel safety pilot control system with a heat shield remains the most versatile value. Match the kit to your fuel, your burner’s BTU demand, and the physical space inside your firebox, and you will end up with a safer, more dependable flame.
