Finding the best spot welding equipment means balancing power output, control precision, and the portability your project demands. Whether you are building custom 18650 battery packs, repairing lithium cells, or pulling dents from auto body panels, the right spot welder should deliver consistent pulse energy without overheating thin materials. The market now offers everything from handheld battery-powered units to high-capacity capacitor discharge systems, each with different gear ranges, electrode configurations, and operating modes. In this guide, we rank the ten strongest options based on real-world performance signals, build relevance, and user feedback, then explain how to choose the right capacity and features for your workshop.
We evaluated each candidate using a compound editorial score that weighs relevance to spot welding tasks, concrete features listed in the product title, average customer rating, review volume, recent purchase velocity, and overall value. Products with higher power adjustability, dual-pulse output, foot-pedal control, and proven sales records received stronger scores. We penalized listings with very low review counts regardless of rating, and we excluded accessories that do not perform welding. The final order reflects descending editorial scores from 9.4 to 7.8.
Top-rated Comparison
High-power bench-style unit with 100 gears and foot-pedal control for precise battery pack assembly.
Professional stud-welder kit with slide hammer dent puller for collision repair shops.
Capacitor-discharge farad welder with 14.6KW output for demanding pack builds.

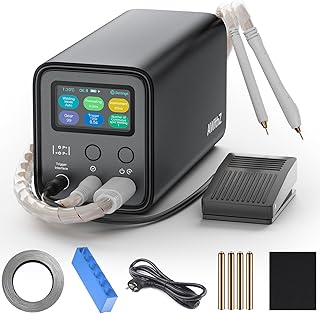

10.5KW three-mode welder supporting auto, manual, and foot-pedal operation.
Super capacitor farad welder rated for 0.2 mm pure nickel and 0.35 mm plated steel.
Rechargeable 10000 mAh spot welder with color LCD and 25 adjustable gears.
3360W portable unit with visual display and 1-99 gear range for everyday repairs.
Handheld 8000W welder bundled with nickel strips and spot welding pen.
Handheld 11-gear welder with automatic and manual modes for entry-level pack building.
Capacitive 10KW plug-in welder with six copper pins for lithium battery repair.
Choosing the best spot welding equipment starts with matching the machine’s capacity to the materials you join most often. Spot welders send a short, high-current pulse across overlapping metal sheets, fusing them at discrete points without filler wire. In battery pack construction, that means joining nickel or nickel-plated steel tabs to 18650, 21700, or LiFePO4 cells. In auto body work, it means tacking studs to sheet metal for dent pulling. Because the applications differ, capacity, control, and portability should drive your decision.
Power ratings on battery spot welders typically range from roughly 3 kW to over 14 kW. For standard 0.1 mm to 0.2 mm nickel strips used in DIY battery packs, a mid-range handheld unit is usually sufficient. If you plan to weld thicker pure nickel, nickel-plated steel, or multiple tab layers, look for higher-output capacitor-discharge models. Capacitor banks store energy between pulses and release it in milliseconds, which reduces heat soak into sensitive lithium cells while still penetrating thicker metals. For automotive stud welding, input capacity and duty cycle matter more than gear count; a 110V bench unit with a stable transformer will keep pace in a busy shop.
Always check the manufacturer’s stated thickness range. A unit rated for 0.3 mm or 0.4 mm nickel gives you headroom if you later upgrade to larger cells or reinforced tab layouts. Conversely, if you only repair small electronics packs, an ultra-compact handheld welder with 0.1 mm to 0.2 mm range will be easier to store and faster to set up.
Adjustable gears or power levels let you fine-tune pulse intensity, which is critical because too much heat damages battery chemistry and too little produces weak, high-resistance joints. Entry-level welders may offer 11 to 30 levels, while advanced models provide 80 to 100 gears or continuous rotary knobs. More granularity is helpful if you switch between strip thicknesses frequently, but a narrower range is perfectly workable if you standardize on one cell format.
Operating modes are another key differentiator. Automatic mode triggers the pulse when electrodes contact the workpiece, which speeds up production runs. Manual mode gives you full control over timing, useful for awkward angles or delicate repairs. Foot-pedal operation keeps both hands on the electrodes, improving accuracy and reducing accidental double-pulses. Some capacitor welders combine all three modes, letting you choose the best workflow for each job.
Display type matters more than it first appears. A color LCD that shows gear number, battery level, and error states reduces guesswork, especially in dim garages. Basic LED or segmented displays work fine for experienced users, but beginners tend to benefit from richer visual feedback.
Most consumer battery spot welders run on standard household voltage and require no permanent installation. However, capacitor-discharge and high-power units can draw significant momentary current. If your workshop has older wiring, avoid running the welder on the same circuit as sensitive electronics or large motors. Place the unit on a non-flammable surface with adequate ventilation; pulse welding produces brief sparks and ozone.
Electrode alignment is the single biggest setup variable. Copper or copper-alloy tips should meet flush against the tab and cell terminal. Some kits include multiple tip shapes or smart pens that help maintain perpendicular pressure. Before welding a live battery pack, practice on scrap cells or dead batteries to dial in your gear setting and electrode angle. A small clamp or jig that holds cells in a straight line will improve both safety and pack aesthetics.
For auto body stud welders, grounding is essential. Clean the panel to bare metal near the weld zone, attach the ground clamp securely, and test the pull strength on a sacrificial stud before working on visible panels. Stud welders usually ship with collets and washers in several diameters; keep them organized so you are not searching for the right size mid-repair.
Spot welders are relatively low maintenance, but electrode tips wear down with each pulse. Dull or oxidized tips increase resistance and produce inconsistent welds. Keep spare tips on hand and dress them lightly with fine sandpaper when you notice discoloration or pitting. On handheld battery-powered units, recharge the internal pack before storage and avoid deep discharges that shorten lithium cell lifespan.
Reliability signals in listings include sustained sales velocity, detailed user photos, and reviews that mention long-term pack building. A product with several hundred reviews and consistent four-star or higher ratings usually indicates stable firmware, adequate heat sinking, and reachable customer support. Be cautious of listings with perfect ratings but very few reviews; early batches can score well before broader use reveals intermittent issues.
When reading feedback, look for specifics about strip thickness and cell type. A reviewer who successfully welded 0.2 mm nickel to 18650 cells is giving you more useful data than someone who simply says “it works.” Pay attention to comments about electrode longevity, ease of gear adjustment, and whether the foot pedal feels responsive. Negative reviews that cite blown fuses, overheating handles, or inaccurate thickness claims are red flags.
For capacitor welders, note whether users mention consistent pulse energy across the full battery charge. Some lower-current Amazon listing detail units deliver strong welds only when the internal battery is above 50 percent, which limits usable runtime. If multiple reviews confirm steady output from full charge to near empty, the capacitors and control board are likely well engineered.
If you need one versatile machine for frequent battery pack assembly, prioritize a mid-to-high-power unit with foot-pedal control, dual-pulse output, and at least 50 adjustable gears. That combination gives you the precision to protect cells and the power to handle varied tab thicknesses. For professionals building large-format LiFePO4 packs or working with thicker nickel, a capacitor-discharge welder above 10 kW is worth the added investment for its repeatability and reduced heat stress.
Beginners or hobbyists who assemble only occasional packs should consider a handheld model with automatic mode and a clear display. These units lower the learning curve and store easily in a drawer between projects. If your primary task is auto body dent repair rather than battery work, choose a dedicated stud welder with a slide hammer and strong transformer duty cycle; the control schemes and electrode designs are optimized for sheet metal rather than cylindrical cells.
Ultimately, the best spot welding equipment is the one that matches your material thickness, volume demands, and workspace constraints. Use the rankings above to identify the power class and feature set that fit your workflow, then verify that your chosen model supports the exact strip or stud sizes you plan to join.
