10 Best Lathe Turning Tools

Buying Guide

Choosing the best lathe turning tools starts with matching the tool system to your lathe type, project scale, and willingness to sharpen. Woodturners and metal machinists use different cutting geometries, shank sizes, and materials, so a clear understanding of those differences will narrow the field quickly.

Woodturning vs. Metal Turning

Lathe turning tools for wood generally fall into two camps: traditional high-speed steel chisels and carbide-tipped tools with replaceable inserts. HSS chisels require frequent sharpening on a grinder or wet stone, but they allow you to shape the exact profile you want for a given cut. Carbide-tipped tools keep a sharp edge longer and are easier for beginners because you rotate or replace the insert rather than grinding the entire flute. If you turn mostly bowls, vases, and spindles, a carbide-tipped wood set with rougher, finisher, and swan neck hollowing profiles will cover most tasks. If you prefer the feel of hand-ground edges and work with varied hardwoods, an M2 HSS or chromium-vanadium chisel set gives you maximum control over edge geometry.

For metal lathes, indexable carbide turning tools are the standard. These use screw-down inserts that present multiple cutting edges. When one edge dulls, you index the insert to a fresh corner or replace it entirely. Metal kits usually include holders for external turning, facing, grooving, threading, and boring. The shank size must match your tool post: 3/8-inch and 1/2-inch shanks are common on mini and mid-size lathes, while 5/8-inch and larger suit full-size engine lathes.

Sizing and Capacity

Shank diameter is one of the most important compatibility checks. A 3/8-inch shank works well on compact mini lathes where tool-post height is limited, but it can chatter on heavy interrupted cuts. A 1/2-inch shank offers a good balance for most hobby metal lathes, providing enough mass to dampen vibration without overhanging the tool post. For larger swing lathes or tougher alloys, a 5/8-inch shank delivers the rigidity needed for consistent surface finishes.

In woodturning, handle length and tool reach matter more than shank diameter. Full-size carbide tools typically measure 18 inches or longer, giving you the leverage needed for large bowl blanks. Pen-turning sets use shorter shanks and adjustable handles that can extend from roughly 14 to 29 inches, letting you work close to the mandrel for detail work or extend the handle for roughing.

Feature Tradeoffs

Carbide-tipped wood sets often ship with diamond, round, and square inserts. The square cutter is aggressive and removes material quickly; the round cutter leaves a smoother surface and is forgiving on uneven grain; the diamond or detail point handles tight radii and finishing cuts. Some premium kits add a bowl sander or hollowing tools, which saves you from buying those accessories separately. Consider whether the handles are interchangeable foam, aluminum alloy, or fixed wood. Foam and rubber absorb vibration, while aluminum and hardwood offer more direct feedback.

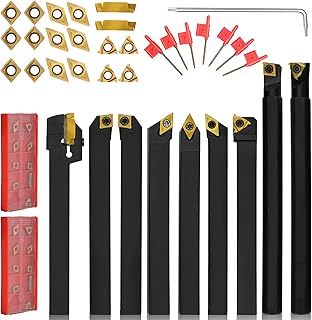

Indexable metal kits vary by insert geometry and holder count. A 21-piece kit with seven holders and 14 inserts is enough for general turning, grooving, threading, and boring. A 27- or 36-piece set adds redundant holders or specialized profiles, which is useful if you run production-style work and want preset tools ready to swap. Look for holders that seat the insert securely with a Torx or Allen screw; sloppy pockets lead to chipped edges and poor finishes.

Setup and Installation

Wood carbide tools are nearly ready to use out of the box. You attach the insert to the tool shaft, seat it with the provided screw, and begin cutting. Because the carbide edge is already ground, there is no initial sharpening needed. HSS chisels, by contrast, often arrive with a basic factory grind. Many turners refine that edge on a slow-speed grinder before the first cut. If you are new to sharpening, factor in the current Amazon listing detail of a grinder and jig.

Metal indexable tools require you to align the holder so the insert cutting edge sits on the lathe centerline. Most holders have a groove or seat that positions the insert at the correct angle, but you still need to set tool height with shims or a quick-change tool post. Make sure the insert screw is tight; a loose insert will fracture under load and can damage the holder pocket.

Maintenance and Reliability

Carbide inserts last a long time in wood, but they are brittle. Dropping a tool on a concrete floor can crack the insert or chip the corner. Keep spare inserts on hand. For HSS tools, learn to recognize when the edge has dulled. A dull HSS chisel will burnish the wood rather than cut it, generating heat and leaving a fuzzy surface. A quick touch-up on a grinder restores the edge.

In metal turning, indexable inserts should be inspected for chipped corners or built-up edge before each session. Store inserts in their original container so the cutting edges do not contact each other. If you notice chatter or a degraded surface finish, rotate the insert to a fresh corner. Once all corners are spent, recycle the insert and install a new one.

How to Compare Reviews

When reading owner feedback on lathe turning tools, look beyond the star average. For indexable metal kits, check whether reviewers mention holder rigidity, insert seating, and whether the stated shank size matched their tool post. For wood carbide sets, pay attention to comments about handle comfort, insert quality, and whether the included profiles actually cover the projects described. A 4.7-star metal kit with 180 detailed machinist reviews can be more informative than a 4.8-star wood set with only 20 brief ratings. Also consider recent purchase velocity; strong past-month sales often indicate that a product is currently shipping without quality-control issues.

Final Recommendation

If you are primarily turning wood and want the easiest path to clean cuts, the carbide-tipped sets ranked at the top offer the best combination of insert variety, handle comfort, and owner-proven reliability. For bowl turners, choose a kit that includes a swan neck hollower and ideally a bowl sander. If you prefer traditional hand-sharpened edges and want to develop foundational skills, the HSS chisel sets in this list provide solid steel and classic profiles at a reasonable entry point.

For metal lathe operators, an indexable carbide kit with a 1/2-inch or 5/8-inch shank is the most practical starting point. The 21-piece layouts cover the essential operations, while the larger 27- and 36-piece sets give you more holder redundancy for complex jobs. Match the shank to your tool-post capacity, verify that replacement inserts are readily available, and prioritize listings with high review counts and consistent ratings. By aligning the tool set to your lathe size and project goals, you can avoid the common mistake of buying profiles you will never use or shanks that chatter the moment you take a finishing pass.
