10 Best Bench Clamps

Review Analysis Conclusion

Based on analysis of 3,825 reviews across the ten ranked bench clamps, a few patterns stand out. Buyers consistently praise T-track hold-downs and clamp-on swivel vises for fast setup and solid grip on standard benchtops, while the strongest criticism centers on holdfasts that loosen in worn dog holes and on bar clamps whose bars flex under heavy load. Mid-pack sets with thinner review counts, such as the MFT-style bench dog kit, show generally positive feedback but limited long-term data, so expect confirmation once you put them through your own routing and glue-up routines. Overall, the field skews toward owners who value quick-release mechanisms, non-marring contact surfaces, and the ability to reposition clamps without re-drilling the benchtop.

Buying Guide

Choosing the right bench clamps depends on more than brand name. Your benchtop style, the stock you handle, and the tasks you perform most often determine which clamp will save time and improve accuracy. Below is a practical framework for evaluating bench clamps before you add them to your shop.

Understanding Bench Clamp Types

Bench clamps fall into several categories, each tuned to a different workflow:

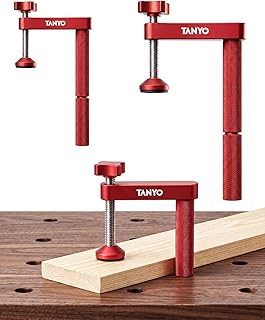

• Bench dog clamps and holdfasts drop into 3/4-inch (19 mm) dog holes to pin boards from above or below the surface. They excel at planing, sanding, and routing because the top surface stays largely unobstructed.
• T-track hold-downs slide into grooves cut into the benchtop or into auxiliary fences. They apply vertical pressure and work well for thin sheet goods or oddly shaped parts that lack flat edges for traditional clamps.
• Clamp-on vises attach to the side of a bench and act like compact leg vises, giving you a third hand for filing, sawing, or drilling.
• Bar clamps and parallel clamps are not dedicated bench fixtures, yet they are indispensable during glue-ups and assembly.

Picking a primary category first will narrow the rest of your decision.

Quick Comparison

Sizing and Capacity

Capacity shows up in two ways: jaw opening and clamping force.

• Jaw opening tells you how much stock a vise or bar clamp can accept. For small boxes or hardware, a 1.5–2.5 in. jaw opening is plenty. For furniture parts, look for vises that open 3 in. or more, or pair bench dogs with long bars that span the full width of your bench.
• Clamping force matters when you are machining material or resisting router kickback. Light-duty spring clamps and small bar clamps often deliver under 100 lb of pressure—fine for holding a straightedge but marginal for heavy stock removal. Heavy-duty bar clamps and steel hold-downs can deliver several hundred pounds, which gives you the confidence to push tools aggressively.

Feature Tradeoffs

Every design choice involves a compromise:

• Clamp-on vises are portable and need no permanent installation, yet they can flex if the bench edge is thin or uneven.
• Bench dog clamps integrate seamlessly into perforated tops, but they are useless on a solid-top bench without modification.
• T-track systems offer infinite positioning along a slot, yet they demand a flat, low-profile head to avoid interfering with tool bases.
• Quick-release mechanisms speed up workflow dramatically, though some designs trade fine tension control for speed.
• Swivel bases on vises improve access to all sides of a part, yet they add moving parts that can wear or loosen over time.

Best For vs. Avoid If

• Best for: woodworkers with T-track or dog-hole benches who route, sand, or plane panels regularly and want a low-profile hold-down.
• Best for: hobbyists working on small benches or shared spaces who need a clamp-on vise they can move between sessions.
• Best for: furniture makers running frequent glue-ups who already own dedicated bench fixtures and want to add bar clamps as a secondary system.
• Avoid if: your benchtop is solid with no dog holes and you do not want to drill or rout into it, since most low-profile clamps rely on some form of pre-cut mounting pattern.
• Avoid if: you routinely work with very thick stock that exceeds the jaw opening of compact clamp-on vises.
• Avoid if: you need certified precision instruments for metrology or machining—general-purpose bench clamps are not a substitute for calibrated fixtures.

Installation and Setup Considerations

Before purchasing, verify compatibility with your existing bench:

1. Bench dog clamps require 3/4 in. or 19 mm holes spaced to match your grid. If your bench lacks dog holes, drill a pattern or choose a clamp style that does not rely on them.
2. T-track hold-downs need either a pre-installed track or a user-routed aluminum channel in the benchtop.
3. Clamp-on vises need a sturdy edge thick enough to accept the mounting screw without crushing the benchtop.
4. Clearance: a tall holdfast may block a track saw or router sled, while low-profile T-track pads stay out of the way but offer less vertical travel.
5. Portability: if you work at multiple locations, prioritize clamps that move with you rather than permanent fixtures.

Common Mistakes to Avoid

• Buying the cheapest bar clamp without checking bar rigidity—thin bars bow under sustained pressure and skew glue-ups.
• Assuming all “3/4 in. bench dog” clamps fit every dog hole; slight tolerance differences can cause rattling or binding.
• Skipping wax or dry lubricant on screw spindles, which leads to sticky threads and premature rust.
• Over-tightening clamp-on vises on thin-edged benchtops, which can split the edge or compress the substrate.
• Mixing non-marring pads between clamps without checking compatibility, since some adhesives attack certain finishes.

Maintenance and Longevity

Steel and aluminum clamps generally outlast plastic ones, but they still benefit from occasional care. Keep screw threads clear of sawdust and glue residue so they turn smoothly. A light coat of paste wax or dry lubricant on screw spindles prevents rust and reduces friction. Inspect rubber or non-slip pads periodically; once they harden or tear, they can slip or mar delicate surfaces. For vises with swivel bases, check the locking bolt tension every few months. Store bar clamps horizontally or hang them by the handle to prevent the bars from bowing over time.

Reading Reviews and Reliability Signals

When comparing bench clamps online, look beyond the star average. A high rating based on a large number of purchases usually indicates consistent manufacturing and broad satisfaction. Read recent reviews for mentions of thread quality, casting flash, or pad adhesion. If multiple buyers report that a clamp slips in dog holes or that a vise base cracks under torque, treat that as a red flag regardless of the overall score. Photos in user reviews often reveal true scale, finish quality, and how the clamp fits standard benchtops. Pay special attention to reviews from woodworkers who describe tasks similar to yours; their experience tends to be more predictive than generic praise.

Frequently Asked Questions

What is the most versatile bench clamp for a small shop? A clamp-on swivel vise is usually the most adaptable single purchase for a small shop because it mounts without permanent modification and handles a wide range of stock sizes.

Do I need dog holes to use bench dog clamps? Yes. Bench dog clamps rely on 3/4 in. or 19 mm holes, so you will either need a bench with pre-drilled dog holes or be willing to drill a pattern yourself.

How much clamping force do I really need? For light sanding and template work, under 100 lb is often enough. For glue-ups and heavy stock removal, aim for several hundred pounds of force to keep the workpiece from shifting.

Can I mix clamp styles on the same bench? Absolutely. Many woodworkers combine bench dogs for planing, a T-track hold-down for routing, and a set of bar clamps for glue-ups to cover the full range of tasks.

Final Recommendation

If you need a single, versatile clamping solution for a T-track equipped bench, a high-quality hold-down system offers the fastest setup and the lowest profile. For general workshop use on a standard workbench, a clamp-on vise with a swivel base gives you the greatest range of tasks without drilling holes. Those with MFT-style or custom dog-hole tops should invest in dedicated bench dog clamps or holdfasts that seat securely and release instantly. If your primary need is assembly and glue-up work, a mixed set of quick-release bar clamps will see daily use alongside any dedicated bench fixture. Start with the clamp type that matches your bench configuration, then supplement with secondary styles as your project variety grows. The best bench clamps are the ones that stay out of your way until you need them, then lock down with absolute confidence.
