10 Best Trailer Axles

Review Analysis Conclusion

Based on analysis of 377 reviews gathered across the ten featured axles, several clear patterns emerge that can guide your selection. The 3,500-lb idler axles in the TK family dominate the review volume, with the 89-inch, 73-inch, and 85-inch hub-face variants each drawing from the same pool of 103 owner reports. This concentration of feedback around a single 3,500-lb platform signals consistent manufacturing tolerances and reliable fitment across multiple track widths, which is why three track-length variations all rank near the top of the list rather than competing against each other on capacity.

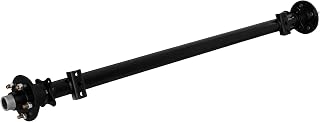

The light-duty 2,000-lb segment tells a different story. Review counts drop sharply once you move past the TK 71-inch hub-face model, with the DreamDragon 71-inch beam, the 58-inch 5-lug option, and the 56.5-inch 4-lug value beam each sitting at only three reviews. Confidence in those entries comes more from detailed specifications and consistent owner ratings than from broad feedback volume, so buyers in that category should weigh dimensional accuracy and stated compatibility especially carefully.

The galvanized torsion axle and the 6,000-lb heavy-duty beam occupy specialized niches where the buying decision usually hinges on environment and payload rather than mainstream appeal. The marine-grade torsion unit carries a modest but targeted review base from boat-trailer owners, while the 6,000-lb axle is positioned for high-capacity RV, freight, and tandem-conversion builds where the smaller review footprint is offset by very specific load demands. In every case, the total of 377 reviews is distributed unevenly, which means the strength of any recommendation scales with how closely your trailer type and frame dimensions match the owners who actually reported back.

Buying Guide

Understanding Axle Capacity and Load Ratings

The first step in selecting a trailer axle is confirming that the gross axle weight rating matches or exceeds your typical payload plus trailer weight. Light-duty 2,000-lb axles suit small utility, landscape, and single-axle cargo trailers, while 3,500-lb units are the workhorse standard for medium cargo, equipment, and camper frames. If you are running a tandem setup or hauling dense material, stepping up to a 6,000-lb beam distributes weight more aggressively. Always account for the total loaded weight rather than the empty trailer mass, and remember that tandem configurations split load across two axles, which changes the math for each individual beam.

Measuring Hub Face and Spring Center

Even the correct capacity fails if the axle does not fit your trailer frame. Hub face measures the distance across the axle from one hub base to the other, determining your overall track width and wheel placement. Spring center is the distance between the center of each leaf-spring seat, and it must align with your hanger spacing on the frame. A mismatch here creates binding, uneven tire wear, or dangerous handling. Before ordering, measure your existing assembly or frame holes carefully and compare them to the listing dimensions. Many buyers overlook spring center when searching for the best trailer axles, yet it is just as critical as the load rating.

Idler Axles vs. Torsion Axles

Most straight axles on the market are idler axles, which use leaf springs and shackle hardware to cushion the load. They are simple to repair, widely available, and easy to match with existing suspension. Torsion axles, by contrast, use rubber cords inside the beam tube to absorb shock independently of external springs. They often deliver a lower ride height, gentler cargo handling, and a quieter towing experience, but field service can be harder because the rubber cords live inside the tube. If you tow a boat near salt water, a galvanized torsion axle resists corrosion better than painted steel, though it typically represents a more specialized investment.

Bolt Patterns and Hub Compatibility

Common bolt circles like 5-on-4.5 and 6-on-5.5 appear frequently in the trailer market. Verify that the axle hubs match your current wheels to avoid buying new rims or adapters. Some axles ship as bare beams without hubs, while others arrive as complete idler assemblies ready for tire mounting. If you are doing a full rebuild, confirm whether bearings, seals, grease caps, and U-bolts are included or must be sourced separately.

Specifications Comparison Table

Best For

• Standard cargo and camper trailers weighing up to roughly 7,000 lb gross — a 3,500-lb idler axle in the 73- to 89-inch hub-face range.
• Compact utility and landscape builds — a 2,000-lb axle in the 56.5- to 71-inch hub-face range.
• Boat trailers and salt-water service — a galvanized 3,500-lb torsion axle.
• Heavy equipment, RV, and tandem conversions — a 6,000-lb beam with a 6-on-5.5 bolt pattern.

Avoid If

• Your frame is wider or narrower than the listed hub face by more than roughly half an inch — even small mismatches cause tire scrub and bearing wear.
• You need to keep your existing 4-lug wheels but are eyeing a 5-lug axle without budgeting for new rims.
• You tow over rough terrain regularly and a torsion axle is undersized for the load, since torsion units lose travel as capacity is approached.

Installation and Setup Considerations

Installing a replacement axle generally requires lifting the trailer, removing wheels and old hardware, and bolting the new assembly to the spring hangers. U-bolt kits secure the axle to the leaf springs, and the torque sequence matters: tighten evenly in stages to avoid warping the spring seats. If you are assembling a new trailer from a kit, check that the hanger height and shackle length produce the correct ride angle. An axle mounted too far forward or rearward alters tongue weight and sway tendency. For torsion axles, the trailing arm angle must be set according to the manufacturer specification to preserve load capacity and ride quality.

Maintenance and Reliability Signals

A quality trailer axle should arrive with smooth machined surfaces on the spindle, properly welded spring seats, and a consistent coat of paint or galvanizing. After installation, repack bearings at least once per season or every few thousand miles, depending on use. Check for grease seal leaks, abnormal tire wear, and loose U-bolts before long trips. Reliability often shows up in owner feedback mentioning straight true beams, accurate dimensions, and hubs that accept bearings without excessive play. When reviews repeatedly note easy fitment and no need for return, that is a strong signal the manufacturer maintains consistent tolerances.

Common Mistakes to Avoid

• Choosing by capacity alone and ignoring spring-center spacing relative to the frame hangers.
• Assuming all 3,500-lb axles share the same hub-face width when they vary from about 61 to 94 inches.
• Overloading a single 2,000-lb axle by stacking dense cargo beyond its rated gross.
• Skipping bearing repacking until a hub overheats on the highway.
• Mixing 4-lug and 5-lug wheels without confirming the hub pattern first.

Frequently Asked Questions

How do I find my current hub-face measurement? Measure from the outermost flat face of one hub to the outermost flat face of the other, across the centerline of the axle. This number is your hub face.

Do I need to match brand when replacing an axle? Not necessarily. What matters is capacity, hub-face length, spring-center spacing, and bolt pattern. Many aftermarket 3,500-lb axles are built to common dimensions that match major OEM specs.

Can I upgrade from a 2,000-lb axle to a 3,500-lb axle on the same trailer? Only if your frame, hubs, wheels, and tires are rated for the higher load. A capacity bump typically requires 5-lug hubs, matching wheels, and sometimes upgraded bearings and brakes.

Are torsion axles worth the extra price? For boat trailers and rough-road towing, yes — independent rubber-cord suspension handles shock better and resists corrosion when galvanized. For basic cargo duty, a straight idler axle is usually the better value.

How long should a trailer axle last? With bearing service every season, proper torque on U-bolts, and no overloading, a quality steel or galvanized axle can easily outlast the trailer frame itself.

Final Recommendations

If you need a dependable 3,500-lb replacement for a standard cargo or camper trailer, the 89-inch Dexter-compatible idler axle offers the strongest combination of verified fitment and owner confidence. For narrower decks, the 73-inch or 85-inch variants in the same product family provide the same capacity with adjusted track widths. Light-duty users with small utility trailers should look at the 2,000-lb options featuring 71-inch or 58-inch hub faces, depending on frame size. Boat owners and those in coastal regions will benefit most from the galvanized torsion axle, despite its specialized nature. If your rig demands maximum capacity, the 6,000-lb heavy-duty axle fills that niche, provided your wheels match its larger bolt pattern. Start by confirming your frame measurements and loaded weight, then choose the model whose specs align precisely with your build.
