10 Best RC Servo Arms

Review Analysis Conclusion

Based on analysis of 1,185 reviews across the ten ranked servo arms, a few clear patterns emerge. 25T aluminum horns with M3 threading dominate owner preference because they fit the widest range of modern servos and accept standard hardware without adapters. Multi-pack bundles consistently outperform single-piece options in satisfaction, since hobbyists value spares for pit bags and multi-vehicle fleets. Color-anodized finishes earn positive mentions for visibility when inspecting for cracks after impacts. Niche picks for SCX24 and TRX4M platforms show that purpose-built geometry is valued over universal compatibility at the micro scale, while round discs and double-arm designs remain specialized choices for robotics, boats, and pull-pull aircraft setups rather than everyday steering upgrades.

Buying Guide

Replacing or upgrading a servo horn is one of the simplest ways to improve steering response and linkage reliability. Because servo arms are the physical bridge between your servo and the control surface, a poor match can introduce slop, strip under load, or fail at the worst moment. The sections below cover the practical factors that separate a good RC servo arm from a great one, along with recommendations on what to choose and what to avoid.

Spline Count and Compatibility

The first filter is spline count. Most modern standard-size servos use a 25-tooth (25T) output shaft, which is the default for Futaba, Savox, Power HD, and many HSP models. A 25T servo horn will slide on and lock securely without slop when the machining is tight. Some legacy or micro servos use 23T, 24T, or even custom counts, so verify your servo specification before ordering. Forcing the wrong count will round out the horn and can damage the servo output gears.

If you run JR servos, older Hitec units, or certain high-torque micro servos, double-check whether you need a 23T or 24T variant. Always consult the manufacturer data, but when in doubt, 25T is the safest bet for cars, trucks, crawlers, and most airplanes built in the last decade.

Material: Plastic vs. Aluminum vs. Metal Alloys

Plastic servo arms are lightweight and inexpensive, making them acceptable for small park flyers, lightweight robots, or beginner beaters where replacement price is the priority. However, plastic flexes under high torque, degrades in UV exposure, and can round out at the spline under repeated loads. For RC cars, trucks, crawlers, and larger aircraft, aluminum or metal-alloy servo horns are the better long-term choice.

Aluminum offers an excellent strength-to-weight ratio. Anodized finishes add corrosion resistance, which matters if you drive in wet, muddy, or dusty conditions. Some metal horns use brass or steel inserts at the spline for extra grip, but pure anodized aluminum designs are the most common in the hobby because they machine cleanly and keep rotational mass low. Higher-end alloys and billet arms cost more but resist bending when your steering hits a curb at full lock.

Single Arm, Double Arm, or Round Disc

Shape matters depending on your linkage layout. A single servo arm is the most common choice for steering on cars and trucks. It provides a simple push or pull motion and keeps the assembly light.

Double arms place horn material on both sides of the servo shaft. They are ideal for pull-pull setups often found on airplane rudders and elevators, or for applications where you want balanced force distribution. A double arm can also be handy if you need to mount two separate linkages to one servo.

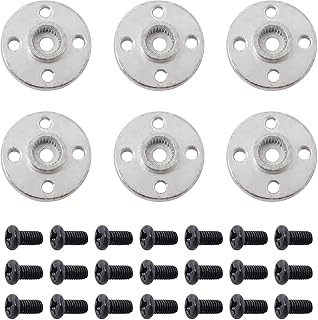

Round servo discs spread stress across the full 360 degrees of the spline. They are popular in robotics, boats, and certain aircraft installations where the linkage attaches near the perimeter of the disc. Discs tend to flex less at the root because the material is distributed evenly, but they take up more space and add rotating mass compared to a single arm.

Thread Size and Hardware

Pay close attention to the thread spec in the product title. M3 is the most common thread size for modern RC linkages and ball ends. M2.5 appears on smaller or more specialized horns designed for lighter loads. Imperial sizes such as 4-40 are still found on some Futaba-oriented hardware and certain US-market kits.

Mixing thread sizes without the proper adapter can introduce play or strip the threads. If your turnbuckles and rod ends are already M3, choose an M3-threaded horn to keep the build consistent. If you are starting fresh, M3 offers the widest selection of compatible hardware.

Length and Mechanical Advantage

Servo horn length changes how much travel your control surface gets per degree of servo rotation. A longer arm increases throw but reduces effective torque at the linkage. A shorter arm increases torque but reduces overall travel. For steering on heavy 1/8 or 1/10 trucks, a medium-length arm around 35 mm to 40 mm often strikes the right balance.

If your steering feels twitchy or harsh, stepping down to a slightly shorter horn can smooth it out. If you need more throw for a large surface, a longer extension arm helps, but watch for flex or binding at the endpoints where leverage is greatest.

Comparison Table: Key Specs at a Glance

Installation and Setup Tips

Before installing any new servo arm, power up your servo and center it electronically or with your radio. Slide the horn on at neutral so your endpoints remain symmetrical. Tighten the retaining screw firmly, but do not overtighten aluminum horns against plastic servo cases; let the spline do the gripping.

Use threadlock on the horn screw if vibration is a concern, especially on nitro trucks, large airplanes, or any rig with aggressive suspension movement. After the first few runs, recheck the screw torque. A loose horn will wobble, strip the spline, and cause erratic control behavior that can be mistaken for servo failure.

Maintenance and Reliability Signals

Inspect servo horns regularly for cracks at the base, especially after hard crashes. Aluminum horns can develop stress marks, anodizing wear, or slight bends. A bent horn will bind the linkage and overload the servo. Replace any horn that shows deformation, stripped threads, or wallowing at the spline hole.

When reading owner feedback, look for comments about how well the horn held up after repeated impacts, whether the threads remained clean, and whether the spline fit was tight or loose out of the package. Long-term crawler, basher, or airplane reports are usually more informative than first-impression posts.

Common Mistakes to Avoid

• Assuming all servos use 25T. Always check your specific model’s spline count before ordering.
• Mixing thread sizes between horn and linkage hardware. M3 and 4-40 are not interchangeable without adapters.
• Overtightening the horn screw and cracking the servo case or deforming the horn.
• Choosing the longest horn available for more throw without checking clearance against the chassis or control surface geometry.
• Ignoring early signs of spline wear. A loose horn today often means a stripped servo gear tomorrow.

Best for Each Use Case

• 1/10 or 1/8 car or truck: A 25T aluminum 5-pack with M3 threads gives flexibility and spares.
• Crawler or drift car: A 2-pack metal horn with black anodizing matches common aesthetics and servo brands.
• Micro crawler (SCX24, TRX4M): A platform-specific horn engineered for that rig’s spline and chassis clearance.
• Robotics or boat: A round aluminum disc kit distributes load and simplifies perimeter mounting.
• Airplane with pull-pull linkage: A double-arm horn in matching thread spec for your servo family.

Avoid If…

• Avoid plastic horns on high-torque steering servos in 1/10 or larger vehicles; they deform quickly.
• Avoid the wrong spline count even if the arm shape looks right; the gear damage is not worth the savings.
• Avoid mismatched threads unless you have verified adapters on hand.
• Avoid extra-long horns on tight chassis without measuring clearance first; binding will overload the servo.

Frequently Asked Questions

What spline count do most RC servos use? The majority of modern standard-size servos use a 25-tooth spline. Older JR and some Hitec units use 23T, and certain micro servos use custom counts.

Is aluminum stronger than the plastic horn that came with my servo? In most cases, yes. Anodized aluminum resists flex and spline wear far better than molded plastic, especially under high torque or repeated impacts.

Can I use M3 hardware on a 4-40 threaded horn? Not directly. The thread pitch and diameter differ, so you will need an adapter or matched hardware to avoid slop or cross-threading.

Do I need threadlock on the horn screw? It is recommended for high-vibration applications such as nitro vehicles, large airplanes, and aggressive off-road rigs. For casual bashing, a firm hand-tight install is usually sufficient.

How do I know when to replace a servo horn? Look for cracks at the base, visible bending, anodizing wear exposing raw metal, or any wobble when the screw is tightened. If the spline hole has rounded out, replace the horn before it damages the servo.

Final Selection Tips

Match the spline count to your servo first, choose a material that fits your vehicle weight and driving style, and verify thread compatibility with your existing linkage. Getting those three variables right will give you a precise, durable connection between your electronics and your control surfaces. From there, choose multi-pack bundles for fleets, dedicated micro horns for compact rigs, and double-arm or disc designs only when your linkage layout actually requires them.
