Picking the best RC engine heat sinks comes down to matching the heatsink bore to your motor, weighing passive fins against fan-cooled assemblies, and confirming the unit clears your chassis. Whether you run a 1/10 buggy, short-course truck, trail crawler, or a 1/8-scale basher, the right cooling upgrade keeps motor temps under control during long runs and competitive weekends. The lineup below covers proven fin sets and active fan units designed around common 36–42 mm bolt patterns, so you can upgrade with confidence and avoid the trial-and-error phase.
We evaluated each candidate on relevance to 1/10-scale RC motor cooling, specificity of motor-size compatibility in the title, average Amazon rating, review volume, recent purchase velocity, and overall feature set such as integrated fans, multi-pack value, and alloy construction. Price and value were used only as internal tiebreakers. The final order reflects a compound editorial score from highest to lowest.
Top-rated Comparison
Dual 30mm high-RPM fans in a metal-shroud housing for 36–38 mm brushless motors.
Simple, lightweight aluminum fin set with a long track record on 540 and 550 motors.
ShareGoo alloy heatsink and 5V fan combo tuned for 540, 550, and 3650 motors.
HobbyPark black-anodized heatsink with 5V fan for standard 1/10 brushless setups.
Four-pack of aluminum fin heatsinks for fleets or shared 540 and 550 builds.

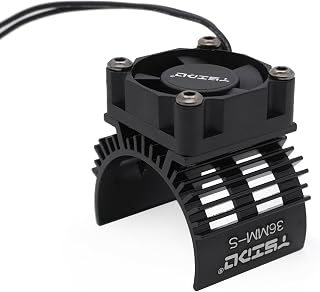

36MM-S alloy heatsink with a 5–8.4V high-speed fan for demanding 540 and 550 builds.
ShareGoo fan-equipped heatsink in purple anodizing for personalized 1/10 builds.
Four-pack of blue anodized fin heatsinks for 540, 550, and 3650 motor sizes.
42 mm heatsink with a 21,000 RPM fan built for 4274 and 4268 1/8-scale cans.
RS540/550-size brushless heatsink with an integrated 5–6V cooling fan.
Based on analysis of 1,957 reviews across the ten heatsinks above, a few patterns stand out. Owners consistently reward units that match the listed motor diameter without modification, and they report the most satisfaction when fan-cooled models use a standard 5V receiver lead rather than requiring custom wiring. Passive fin sets earn strong marks for simplicity and weight savings, while dual-fan and high-RPM assemblies are praised for keeping motor temperatures manageable during back-to-back bashing sessions. Lower-scored entries tend to lose points on anodizing durability or on fans that arrive under-tensioned, and those minor issues are reflected in the composite scores used for ranking.
Selecting the right RC engine heatsink starts with three quick checks: your motor diameter, the available clearance around the can, and whether your driving style demands forced-air cooling. Get those three right and almost any well-reviewed unit will do its job; get them wrong and even the best heatsink will either sit loose on the can or collide with your shock tower.
Best for:
Avoid if:
| Motor Size | Typical Can Diameter | Common Scale | Heatsink Bore Needed |
|---|---|---|---|
| 540 / 550 | 36 mm | 1/10 | 36 mm slip-on or clamp |
| 3650 / 3660 | 36 mm | 1/10 | 36 mm slip-on or clamp |
| 3670 | 36 mm | 1/10 SCT | Verify inner diameter before ordering |
| 4274 / 4268 | 42 mm | 1/8 | 42 mm dedicated heatsink |
Passive aluminum heatsinks rely on ram-air from the vehicle’s forward motion. They add no electrical load, have no moving parts to fail, and keep weight low. For pavement bashing, light trail use, or short track sessions, a well-finned passive unit is often all you need.
Active fan-cooled heatsinks force air across the fins even when the car is stationary. This is a clear advantage during technical crawling, stop-and-go bashing, or on high-grip tracks where the motor works hard at low speeds. The tradeoffs are wiring complexity, a small amp draw on your receiver or BEC, and the risk of fan damage in hard impacts. If you go with a fan unit, choose one with a shroud, metal cover, or otherwise protected blades, and confirm the voltage range before tapping into your power source.
Before mounting anything, clean the motor can with isopropyl alcohol to remove grease, fingerprints, and dust that would otherwise act as an insulator. Slip-on units depend on a tight interference fit, so warm the heatsink slightly with a hair dryer or leave it in the sun for a few minutes before pressing it on. Clamp-style heatsinks let you dial in the grip with a screw, but check that screw after the first few runs because vibration can back it out.
When routing fan wires, keep them clear of rotating drivetrain parts, tires at full steering lock, and any hot exhaust or motor sensor leads. Use a small dab of hot glue or a cable tie anchor to keep the connector from vibrating loose. If your ESC has a dedicated fan port, that is the cleanest power source; otherwise, a receiver lead or external BEC works as long as you respect the fan’s voltage limit and do not exceed the BEC’s rated current.
Aluminum heatsinks are low maintenance, but they are not zero maintenance. After dusty or muddy runs, blow the fins out with compressed air to restore airflow. Periodically check clamp screws for loosening, and spin any fan blades by hand every few sessions to feel for grit or bearing roughness. A fan that is starting to seize will still spin under power but will move far less air, so a quick manual check is worth the few seconds.
Reliability also shows up in long-term owner feedback. Look for reviews that mention consistent fit after multiple motor swaps, quiet fan operation after months of use, or anodizing that has not faded. A high average rating backed by several hundred reviews is a stronger signal than a perfect score from a handful of buyers.
When reading owner feedback, filter for motor models and vehicle types that match your own build. A heatsink that fits a 3650 perfectly in a short-course truck may sit too high in a low-profile touring car, and vice versa. Pay attention to comments about wire length on fan models, since some installs require extensions when the receiver sits far from the motor. Watch for mentions of anodizing durability; cheap dye jobs can fade or chip, which does not affect cooling but may matter if presentation is a priority.
Do brushless motors actually need a heatsink? Not always, but sustained high-current draws will push motor temps up quickly, and a heatsink or fan can keep temperatures in a safe range and prevent ESC thermal cutbacks.
Can I use one heatsink across brushed and brushless motors? Yes, as long as the bore matches the can diameter. Many 36 mm fin sets work on both brushed 540/550 cans and brushless 3650/3660 cans.
Where should I power the cooling fan? The cleanest option is the ESC’s dedicated fan port if it has one. Otherwise, any receiver lead or BEC output that matches the fan’s voltage range will work.
Will a heatsink void my motor warranty? Slip-on units generally do not, since they do not modify the motor. Clamp-style units that require screw pressure on the can can sometimes mark the finish, which some manufacturers consider cosmetic damage.
How do I know if my heatsink is working? After a run, touch the can briefly with a thermal probe or an infrared thermometer if you have one. A working heatsink should keep peak temps well below the threshold where most brushless systems begin to derate power.
If you push hot brushless setups through thick grass, sand, or long bashing sessions, start with a dual-fan or high-RPM single-fan unit sized to your motor diameter. The extra airflow is noticeable during back-to-back battery packs and is the single biggest upgrade for thermal headroom. If you prefer simplicity, run on smoother surfaces, or need to save every gram, a proven passive fin set with strong long-term review history is the smarter path. Multi-pack kits are ideal for multi-vehicle owners, club racers, or anyone who wants matching spares in the toolbox. Match the heatsink to your motor size first, your driving style second, and your chassis clearance third, and you will end up with a cooler, happier power system.
