Picking the best performance intake manifold gaskets comes down to how well a set seals under heat, pressure, and vibration on your specific engine. The wrong gasket can leak vacuum, cross coolant into oil, or fail after a few heat cycles, while the right set disappears into the build and does its job for years. In this guide, we rank ten standout options across small-block Chevy, modern LS, and Ford Windsor platforms, focusing on port alignment, material construction, and documented installer feedback rather than marketing claims.
We evaluated each gasket set using a compound editorial score that weighed relevance to performance V8 builds, the specificity of engine fitment data in the listing, average customer rating, review volume, recent purchase velocity, brand reputation for sealing technology, and overall value within the category. Products with broad platform coverage, strong feedback from verified installers, and proven materials received higher placement.
Top-rated Comparison
Proven FEL-PRO sealing for Chevrolet Camaro and Gen-I small-block builds with massive owner feedback.
High-volume FEL-PRO 1204 set trusted by SBC builders for consistent port alignment.
The benchmark FEL-PRO 1205 set for traditional small-block Chevrolet performance rebuilds.
FEL-PRO 1250 design optimized for applications needing extra sealing bead definition.

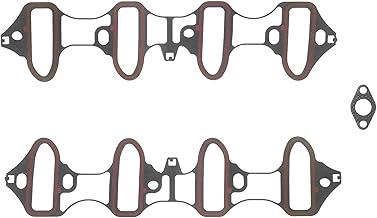

FEL-PRO MS 92211 engineered for Chevrolet Silverado 1500 and related Gen-III truck platforms.
MS98016T multi-piece set tailored for LS1, LS2, LS3, LS6, and later truck variants.
FEL-PRO 1206 S-3 series with upgraded materials for aggressive street and race use.
FEL-PRO 1262 set offering balanced sealing for a wide range of classic V8 engines.
FEL-PRO 1240 gasket set delivering solid OE-plus sealing for mild performance builds.
DNJ IG4112A covers classic Ford 302 through 351W platforms with direct-fit engineering.
Based on analysis of 4,272 reviews across the ten listed gasket sets, clear patterns emerge about which designs hold up in the real world. The top-ranked FEL-PRO options for the small-block Chevrolet platform dominate both review volume and average rating, which suggests broad installer agreement on sealing behavior across stock and mildly modified combinations. Sets with fewer than 100 reviews, including the FEL-PRO 1206 S-3, FEL-PRO 1262, FEL-PRO 1240, and DNJ IG4112A, still show strong ratings but carry thinner feedback, so individual installation outcomes may vary more than the score alone implies. Multi-layer steel sets tied to truck and LS applications earn solid marks for handling thermal cycling in daily-driven vehicles, while composite sets are repeatedly praised for forgiving fitment on older castings. Across the list, recurring complaints center on coolant weep at corners and the need for light port-matching, while recurring praise focuses on consistent thickness and bolt-hole alignment.
A performance intake manifold gasket is a low-cost part that controls three high-stake interfaces: intake air, engine coolant, and sometimes crankcase ventilation. Choosing well means matching material and geometry to your engine combination rather than buying whatever fits the broadest year range.
| Spec | Why It Matters | Typical Range / Options |
|---|---|---|
| Material construction | Controls conformability vs. blowout resistance | Composite, composite with steel armor, multi-layer steel |
| Port shape and size | Affects runner alignment and air velocity | Standard, matched, or oversized ports |
| Coolant passage layout | Determines compatibility with head casting | SBC, LS cathedral, LS rectangular, Windsor |
| Compressed thickness | Influences plenum volume and throttle body geometry | Typically 0.030-0.060 inch |
| End seal design | Front and rear china wall sealing method | Molded rubber, cork, bead sealant required |
| Bolt hole count and pattern | Must match intake flange exactly | 8-bolt SBC, 8-bolt LS, Ford Windsor patterns |
| Operating temperature rating | Indicates suitability for forced-induction builds | 350-550°F continuous service |
Composite non-metallic gaskets conform well to slightly irregular surfaces, making them forgiving on older castings that have been resurfaced multiple times. The trade-off is compression set over years of thermal cycling, especially under high cylinder pressure.
Steel-core composites add rigidity around ports and coolant passages. They are a strong middle ground for street-strip builds that want composite conformability with extra blowout resistance.
Multi-layer steel gaskets handle the highest clamp loads and resist crushing, which is why they dominate modern LS and truck applications. They demand cleaner, flatter mating surfaces, so any deck work should be checked with a straightedge before installation.
Micro-features such as printed sealing beads or fluoropolymer coatings increase localized pressure around fluid passages. These allow a reliable seal at modest bolt torque, which is helpful on aluminum and iron combinations where differential thermal expansion can walk a softer gasket.
Surface preparation determines whether even the best gasket will survive its first heat cycle. Both the cylinder head and intake manifold flanges must be clean, dry, and free of old material. Use a plastic scraper or a gasket removal disc rather than wire wheels or aggressive abrasives that gouge aluminum.
Check flatness with a straightedge and feeler gauge. For performance builds, aim for less than 0.005 inch of variation across the flange. Test-fit the gasket with the manifold dry before applying any sealant, confirming that ports align and that bolt holes allow the manifold to drop into place without forcing the gasket out of position.
Torque the intake in a spiral pattern from the center outward, usually in three staged passes. Follow the manufacturer’s specification for bolt torque and thread lubrication. Overtightening crushes composite cores; undertightening allows vacuum leaks that often look like carburetor or sensor problems.
Pay close attention to end seals. Many builders apply a small bead of RTV or anaerobic sealant at the front and rear china walls rather than relying solely on cork or rubber end seals, which can extrude under boost or high vacuum.
How often should intake manifold gaskets be replaced? Any time the manifold is removed. Performance gaskets are not designed for reuse, and re-torquing rarely restores a reliable seal on a used gasket.
Do performance gaskets require sealant? Most modern sets are designed to seal dry. A small amount of sealant is usually only needed at the front and rear china walls where the gasket set does not provide a molded end seal.
Can I use an LS gasket on a cathedral-port and a rectangular-port build? Only if the set specifically covers both port shapes. Cathedral-port and rectangular-port LS heads use different port openings, and the wrong gasket will either restrict airflow or expose the coolant jacket.
Are multi-layer steel gaskets worth the price for a street build? For naturally aspirated street applications with stock to moderate cylinder pressure, a quality composite or steel-core composite gasket is usually sufficient. Multi-layer steel becomes more valuable on forced-induction or high-compression combinations.
How do I confirm the gasket fits my engine? Match the part number to your specific engine code, displacement, and head casting rather than relying on a broad year range. If you have performed head work or installed an aftermarket manifold, confirm port alignment with a dry fit before final installation.
For a classic Chevrolet small-block, the FEL-PRO MS 90314-2 and FEL-PRO 1204 sets are the safest choices, combining time-tested materials with extensive installer feedback. The FEL-PRO 1205 remains the reference standard for traditional street builds. LS and truck platforms are best served by the MS98016T set, which includes the valley and intake seals required for a complete job. Ford Windsor projects benefit from the platform-specific geometry of the DNJ IG4112A. For higher cylinder pressures or aggressive cam profiles, the FEL-PRO 1206 S-3 series offers upgraded facing material and improved torque retention. In every case, match the gasket material to your engine combination, verify surface flatness before installation, and prioritize sets with documented success on your specific platform.
