Based on analysis of 88 reviews spread across the ten ranked modules, the strongest feedback consistently praises AD620-based boards for their predictable behavior, easy integration with 3.3V and 5V microcontrollers, and stable gain at moderate settings. Reviewers working with bridge sensors and load cells repeatedly highlight the value of onboard zero-point calibration, while those building low-power or battery-operated nodes respond well to INA333 and AD620 low-power variants. Review volume per listing is modest, so individual scores should be read as directional signals rather than statistically robust rankings; the ordering above reflects feature breadth, design flexibility, and alignment with common precision-signal tasks.

Buying Guide

Choosing the right instrumentation amplifier module is less about brand and more about matching the IC’s electrical character to your sensor, supply rail, and enclosure. The notes below walk through the practical decisions that determine whether a board performs well in your specific build, from gain budgeting to wiring hygiene.

Understanding Gain Range and Signal Levels

The primary job of an instrumentation amplifier is to lift a small differential signal—often microvolts or low millivolts—into the input window of an ADC or microcontroller. Start by noting the smallest expected signal from your sensor and the full-scale input of your converter. A strain-gauge bridge may produce only a few microvolts per unit of load, which calls for a module capable of 1,000x or more gain. Some AD620-based boards span from roughly 1.5x up to 10,000x, which is useful when you want one module to serve very different sensors. Remember that gain amplifies noise and offset along with the signal, so budget headroom for filtering and shielding whenever you push into the upper gain range.

Supply Voltage and Power Architecture

Most hobby-grade modules accept a DC supply in the 3–12V range, which lines up cleanly with Arduino, Raspberry Pi, and common bench supplies. If your project runs from a single battery or a USB rail, confirm that the module supports single-supply operation and check whether its input common-mode range reaches close to the negative rail. Dual-supply designs offer more headroom around ground but require an extra negative rail or a charge-pump inverter. For portable or wearable builds, low-power variants built around the INA333 or low-power AD620 are usually the safest choice.

Feature Tradeoffs: Fixed vs. Adjustable Gain

Fixed-gain modules use a single resistor to set gain and tend to be the most stable because there are no mechanical adjustments to drift over time. Adjustable-gain modules expose a potentiometer or external gain resistor and are ideal when you need to evaluate several sensor types or iterate on sensitivity during prototyping. A fixed-gain board is usually preferable in a production-style build where the sensor is well characterized; an adjustable board is preferable in a general-purpose lab where the same module may be paired with a load cell today and a thermocouple amplifier tomorrow.

Input Configuration and Zero-Point Calibration

Bridge sensors, thermocouples referenced to a cold-junction, and many biomedical electrodes rarely sit at a perfect zero output. A small DC offset can consume a large slice of your ADC’s dynamic range if left uncorrected. Modules with an adjustable zero-point or reference pin let you null this baseline in the analog domain, which preserves resolution and keeps firmware simpler. When comparing boards, look for an exposed trim potentiometer or a dedicated reference pin and confirm that the reference input can be driven from a low-impedance source.

Installation and Setup Considerations

Most modules break out the classic instrumentation amplifier pinout: positive input, negative input, gain setting, reference, and supply. Before soldering, confirm the silkscreen against the datasheet; the reference pin is often mistaken for ground and can shift the entire output if tied to the wrong potential. Keep input leads short, twisted, or shielded, and place the amplifier physically close to the sensor to minimize loop area. Adding small ceramic decoupling capacitors across the supply pins is a low-cost way to reduce high-frequency noise on the rail.

Maintenance and Reliability Signals

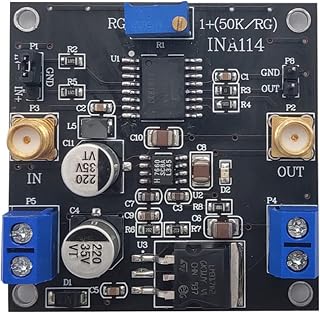

Analog performance drifts with temperature and age, so the underlying IC matters more than the board layout. Modules built around mature parts such as the AD620, AD623, INA114, and AD8221 benefit from well-documented thermal behavior and stable internal resistor matching. In reviews, look for repeated comments about output drift, oscillation at high gain, or dead channels after weeks of use; these often point to weak passive components or marginal solder joints rather than the IC itself. Boards that include a socketed IC can be a plus if you anticipate replacement, while conformal coating is a plus for humid or outdoor deployments.

How to Compare Reviews Effectively

Review volume in this category is modest, so individual star ratings carry less weight than the specifics inside each review. Prioritize feedback that names the sensor type, supply voltage, gain setting, and observed noise or drift. A reviewer who measured output with an oscilloscope and reported the actual millivolt noise floor is far more informative than a generic five-star comment. Critical reviews that mention oscillation at high gain, offset instability, or incompatibility with 3.3V logic should be weighted more heavily than vague complaints.

Best For, Avoid If

Best for: microvolt bridge sensors, strain gauges, load cells, thermocouple amplifiers, ECG and EMG front ends, and any application where common-mode noise from motors or power lines threatens small differential signals.

Avoid if: you only need to amplify signals above a few hundred millivolts, you are working with audio frequencies where a standard op-amp suffices, or you require bandwidth above a few hundred kilohertz, since true instrumentation amplifiers trade speed for precision.

Key Specifications at a Glance

Common Mistakes to Avoid

• Setting gain too high for the input signal and clipping into the supply rail without realizing it.
• Routing input leads near switching converters, motors, or USB cables that inject common-mode noise.
• Tying the reference pin to ground on a single-supply board, which removes the output’s ability to sit at mid-rail.
• Using long, unshielded jumper wires between sensor and amplifier, which acts as an antenna.
• Skipping decoupling capacitors on the supply pins.

Frequently Asked Questions

Do I really need an instrumentation amplifier, or will a regular op-amp work? If your signal source is truly differential, your sensor sits in a noisy environment, or you need high common-mode rejection, a dedicated instrumentation amplifier is the right tool. For single-ended signals with comfortable levels, a standard op-amp is usually simpler and cheaper.

What gain should I start with? Aim for an output that uses about 70–80 percent of your ADC’s input range at the largest expected signal. Start lower and increase if resolution is insufficient.

Can I run these modules from 3.3V logic? Many boards accept down to 3V, but output swing will be reduced. Check the datasheet’s output voltage range versus your rail to avoid clipping.

Are the multi-pack listings worth it? If you are building multi-channel data acquisition or want a spare for debugging, yes. If you only need one channel, a single-board listing avoids tying up unused inventory.

How do I reduce noise at high gain? Shorten input wiring, use shielded or twisted pairs, add supply decoupling, and consider a low-pass filter at the amplifier output before the ADC.
