10 Best Electromagnetic Interference Filters

Review Analysis Conclusion

Based on analysis of 2,505 reviews across the ten ranked products, the picture for electromagnetic interference filters is unusually consistent. Clip-on ferrite kits dominate both review volume and recent purchase velocity, accounting for the bulk of the 2,505 total reviews and the strongest sales signals on the list. Buyers repeatedly credit the same outcomes: cleared audio hum, stable USB and HDMI links, and quieter sensor readings after snapping a core onto the offending cable. Inline power filters earn fewer reviews but trend toward higher star averages, reflecting a narrower but more technically demanding audience.

Review volume is unevenly distributed. Three products cross 400 owner reviews each, while the DC filter board sits at the bottom of the list with only a handful. That thin base is a confidence limit worth flagging: feedback on the lowest-ranked item is informative, but a single outlier review carries more weight than it would for a 600-review kit. For mission-critical installations, prioritize products with both a long review history and stable recent sales.

Across the full set, common praise themes are easy installation, useful size variety in multi-pack ferrite kits, and noticeable noise reduction on the first install. Common complaints center on sizing charts that undersell the actual cable diameter, ferrite housings that crack if forced, and bulk AC filters that run warmer than expected when pushed near their current limit. Keeping those failure modes in mind makes the gap between a kit that “works” and one that genuinely solves the problem.

Buying Guide

Noise problems rarely announce themselves politely. The screen flickers only when the fridge compressor kicks on, the CNC spindle only stalls when the dust collector starts, and the recording interface is crystal clear until someone flips a light switch. Electromagnetic interference filters exist to break those cause-and-effect chains, but the right type depends on where the noise is travelling. This guide walks through how to match a filter to the problem, what to check in the specs, and where buyers most often go wrong.

Best For vs. Avoid If

Inline Power Filters vs. Cable Ferrite Cores

Electromagnetic interference filters fall into two families, and the first decision is which one to use.

Inline power filters install at the power entry point of a device or enclosure. They use inductors and capacitors to shunt high-frequency noise to ground while letting the 50/60 Hz mains or DC pass through. Use them when the entire instrument, amplifier, or controller behaves badly on shared power, or when a nearby motor, welder, or HVAC system is back-feeding noise through the building wiring.

Clip-on ferrite cores slip over cables already in service. The ferrite material absorbs and dissipates high-frequency common-mode noise as gentle heat. They deploy in seconds, are fully reversible, and shine when the issue is radiated noise picked up by USB, HDMI, or sensor leads. If the screen flickers when a compressor kicks on, a ferrite on the video cable is often enough. If the entire rack buzzes, start with the inline filter.

Key Specs to Check

For AC inline filters

• Voltage range (115 V, 230 V, or universal 115/250 V)
• Current rating (10 A, 20 A, or higher) — must exceed your peak load with margin
• Number of filtering stages (single vs. multi-stage attenuation)
• Insertion loss and frequency range, if published
• Termination style (spade lugs, screw terminals, or leads)
• Safety or component certifications, when stated in the listing

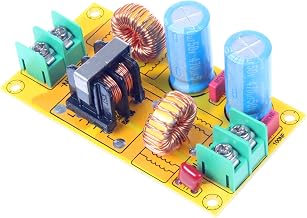

For DC filter boards

• Maximum input voltage and continuous current
• Topology (LC, π-filter, or common-mode choke)
• Connection type (screw terminals, header pins, solder pads)
• Physical footprint and mounting holes

For ferrite cores

• Inner diameter vs. your cable’s outer diameter, jacket included
• Material mix (nickel-zinc for higher frequencies, manganese-zinc for lower)
• Snap-on vs. solid toroid (snap-on for retrofit, solid for pre-termination)
• Impedance at the target frequency, when listed

Common Mistakes

• Treating symptoms on the wrong cable. If the noise source is a motor on a different circuit, no ferrite on the USB lead will help. Trace the power path first.
• Sizing ferrite cores too loosely. A 3 mm bead on a 9 mm power cord barely changes the impedance. Always measure the cable diameter with the strain relief included, then choose the closest snug fit.
• Stretching a small core over a larger cable. Forcing it can crack the housing and silently drop attenuation.
• Underspec’ing the inline current rating. A filter running near its limit runs hot and suppresses less effectively.
• Routing filtered and unfiltered wiring in parallel inside an enclosure. They will re-couple capacitively and undo the filter’s work.
• Burying a filter board inside a sealed box with no airflow. At rated current, even efficient LC filters shed some heat.

Installation and Setup Considerations

Mount AC filters as close to the power inlet as possible. Keep the filtered-side wiring short, route it away from switching supplies, and maintain a solid ground bond with star or lock washers. Leaving the chassis paint between the filter tab and the panel defeats the ground path.

Place DC filter boards near the load rather than near the source, and keep input leads separated from output leads. If the board runs warm at full rated current, a small heatsink or a vented enclosure is worth adding.

Ferrite cores are the simplest install: open the clip, seat it over the cable, and snap it shut. Place the core as close to the affected device as possible. On particularly stubborn lines, a second core a few inches farther down the cable adds incremental attenuation. If the cable has slack, looping the wire through a toroid two or three times multiplies the effective inductance — useful for low-frequency switching noise.

Reading Reviews Like a Shop Owner

Generic praise tells you almost nothing. Reviews that name the actual symptom cleared — an audio hum that vanished, a 3D-printer board that stopped rebooting, a TV that stopped pixelating — are far more useful than a bare “works great.” On the negative side, repeated complaints about sizing, cracked latches, or warmth at rated current tend to be structural and will not improve with luck.

For inline filters, look for reviews from users in the same application space you care about (ham radio, audio, medical, industrial). For ferrites, weight any review that mentions the exact cable type and diameter; what fits an HDMI cable may rattle on a USB-C charging lead.

FAQ

Do EMI filters affect signal quality? Ferrite cores are designed to suppress common-mode noise while leaving the differential signal largely untouched, so well-chosen cores should not slow a data link or alter audio tone. Inline power filters are similarly transparent at mains frequency and only act on out-of-band noise.

Can I use a ferrite on a shielded cable? Yes. Most shielded cables still pick up common-mode noise on the drain path; a ferrite at the connector end often helps even when the shield is intact.

How many ferrite cores do I need? One per problematic cable is a good rule of thumb, but a multi-size kit is cheaper than buying singles and lets you treat newly added cables later.

Will an EMI filter lower my electricity bill? No. These devices target high-frequency noise, not 50/60 Hz power, so they do not meaningfully change energy consumption.

Final Recommendation

For whole-system protection on noisy mains, choose an inline AC filter with a current rating comfortably above your peak load. For low-voltage projects, a compact LC board near the load will scrub switching noise from motor drivers and wall bricks. When the problem lives on individual cables, start with a broad-assortment ferrite kit so you can size to each lead without guessing. Match the family to the symptom, leave headroom in the ratings, and treat the owner reviews as a sizing chart in disguise.
