Review Analysis Conclusion
Based on analysis of 1,273 reviews across the ten products in this guide, a clear pattern emerges: the highest-scoring assemblies are not always the most expensive, but they share a few consistent traits. Strong review totals (in the hundreds) correlate closely with accurate fitment data, durable rubber isolators, and bracket hardware that bolts in without modification. Lower-volume listings still rate well, but they carry more inherent uncertainty simply because fewer long-term owners have reported back.
A few cross-list takeaways for shoppers:
- OE-supplier brands dominate the top of the rankings. ACDelco Gold and National products capture more than 80% of the total review volume in this guide, and their average scores reflect the consistency buyers expect from major driveline suppliers.
- Application-specific designs outperform universal-style claims. Assemblies built for a single platform (such as the National HB-108-D for Ram 1500 or the A-Premium F-150 carrier bearing) earn higher ratings per review than cross-platform parts that rely on bracket adaptability.
- Self-aligning bearings earn their premium for modified rigs. The Spicer 1810 series justifies its score with buyers who run lifted trucks or higher-torque loads, where minor driveline angle changes would otherwise stress a fixed bearing.
- Thin-review products are not necessarily lower quality. A score above 9.0 from only a handful of owners, as seen with the Spicer and A-Premium entries, should be weighed against the smaller sample size rather than dismissed outright.
For most daily drivers, prioritizing review volume and OE-supplier pedigree is the safest path. For modified or heavy-duty use, the premium-tier self-aligning options offer a meaningful upgrade in tolerance and service life.
Buying Guide
Understanding Center Support Assemblies

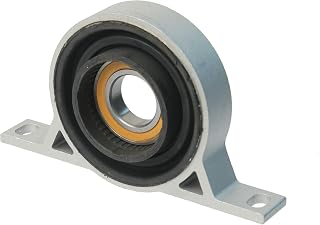

A center support assembly—also called a carrier bearing or driveshaft support bearing—anchors the middle of a two-piece driveshaft to the chassis. It carries the rotating mass of the driveshaft, absorbs minor angular misalignment, and isolates driveline vibration from the cabin. When the internal bearing or the surrounding rubber isolator fails, the symptoms are usually unmistakable: a low hum that rises with speed, a clunk when shifting between drive and reverse, and visible sagging of the driveshaft on lifted vehicles.
Because the assembly mounts directly to the frame and interfaces with a specific driveshaft tube diameter, it is one of the most application-sensitive driveline parts you can buy. A listing that looks identical to another can have a different bearing inner diameter, bracket hole spacing, or isolator durometer.
Fitment and Sizing: The First Check
Always start with the OE part number stamped on your existing bearing housing or bracket, then cross-reference it against the replacement. Verify three measurements before ordering:
- Driveshaft outer diameter at the center bearing location (commonly 2.5", 3.0", or 3.5").
- Bracket mounting hole pattern relative to the frame.
- Bearing inner diameter (commonly 1.181" / 30mm for many light-duty applications).
If you drive a truck offered in multiple wheelbases, confirm the assembly matches your cab and bed combination. A standard cab short bed and an extended cab long bed typically use different driveshaft lengths, which changes the center support location on the frame.
Best for
- Daily drivers and commuters – ACDelco Gold and National sealed bearings offer the best balance of price, availability, and proven longevity.
- Modified or lifted trucks – A self-aligning bearing (such as the Spicer 1810 series) tolerates driveline angle changes that a fixed bearing cannot.
- BMW, Lexus, Toyota, and Nissan owners – Application-specific listings like URO Parts, the 37230-29015 cross-platform part, and the ECCPP D21/Frontier assembly reduce the risk of fitment surprises.
- Heavy-duty towing and load hauling – Spicer or National bearings rated for higher torque loads hold up better under sustained stress.
Avoid if
- You cannot confirm the OE part number or driveshaft diameter for your specific vehicle.
- Your original bracket is severely corroded, distorted, or has elongated mounting holes—buy a complete assembly, not a bearing-only repair.
- The listing shows only a handful of reviews with no verified fitment feedback for your exact model.
- You are also replacing adjacent U-joints, flex discs, or the center U-joint—consider a bundled kit instead of mixing old and new hardware.
- The vehicle has been lifted or lowered without a corresponding driveshaft angle correction; the center support is a symptom, not the root cause.
Key Specs to Compare
| Feature |
What to look for |
Why it matters |
| Bearing type |
Sealed ball bearing, self-aligning optional |
Sealed units need no maintenance; self-aligning tolerates angle variation |
| Rubber isolator |
Premium-grade EPDM or natural rubber |
Better NVH damping and longer service life under torque load |
| Bracket design |
One-piece stamped steel or cast iron |
Stiffer brackets resist flex and maintain bearing alignment |
| Hardware included |
Mounting bolts, nuts, and any required washers |
Missing hardware is a common source of installation delays |
| OE part number cross-reference |
Multiple reference numbers listed |
Confirms broad coverage and simplifies parts lookup |
| Service kit availability |
Companion U-joints or flex discs |
Useful when adjacent components are also worn |
Installation and Setup Considerations
Replacing a center support almost always requires dropping the driveshaft, so plan for safe vehicle support and clear workspace. Before unbolting anything, scribe alignment marks across the transmission flange, each driveshaft section, and the rear axle flange so reassembly preserves the factory phase. A driveshaft installed out of phase is a leading cause of post-repair vibration.
During the swap:
- Support the driveshaft with a wire hanger or a second jack to prevent pulling the transmission output seal.
- Inspect the slip yoke and splines for wear or lack of lubrication while the shaft is out.
- Verify the new bearing seats squarely in its bracket before tightening hardware.
- Torque bracket bolts to the vehicle manufacturer specification—over-tightening compresses the rubber isolator and shortens its life.
- After installation, recheck all fasteners after the first 50 to 100 miles.
Common Mistakes
- Ordering by vehicle make and model alone. Center supports vary by wheelbase, cab style, and even bed length. Always confirm the OE part number.
- Reusing a corroded or stretched bracket. A new bearing in a worn bracket will not cure driveline vibration.
- Skipping the phase marks on the driveshaft. Even a perfect bearing will hum if the shaft is reinstalled out of phase.
- Ignoring adjacent wear items. If the U-joints or flex discs are original, replacing only the center support is a short-term fix.
- Over-torquing the bracket bolts. Compressed rubber isolators lose their damping ability and fail prematurely.
- Assuming a “fits all” listing really fits all. Cross-platform parts (such as the Lexus/Toyota 37230-29015) cover specific generations only—verify the model years before ordering.
How to Compare Reviews Effectively
- Filter by your exact vehicle. A 4.8-star average on a different chassis variant is not a guarantee for yours.
- Look for repeated complaints. Multiple mentions of bracket misalignment, loose press fit, or missing hardware signal a quality control issue.
- Weight long-term reviews more heavily. Feedback posted six months or more after installation is a better predictor of durability.
- Read packaging and shipping comments. Recurring praise for secure packaging and complete hardware often reflects a seller that understands the buyer experience.
- Be cautious with very small sample sizes. A perfect 5.0 from three reviews is less informative than a 4.7 from 300.
Maintenance and Longevity
Modern center supports are sealed and maintenance-free, but they are not immune to wear. Road salt, moisture, and repeated torque loads gradually degrade the rubber insulator and bearing seals. A quick visual inspection during tire rotations or undercar service can catch early signs of cracking, sagging, or grease weeping around the bearing housing.
If a new driveline hum or resonance appears at a specific speed after installation, the center support is often the first place to look. Early replacement protects the U-joints, transmission output seal, and even the rear pinion seal from secondary damage.
FAQ
How long does a center support assembly typically last?
Most sealed assemblies last 80,000 to 150,000 miles under normal driving. Towing, lifted suspensions, and exposure to road salt shorten that window.
Can I replace just the bearing and reuse the bracket?
Sometimes, but only if the bracket is clean, straight, and free of corrosion. A new bearing in a worn or stretched bracket usually fails quickly. For most DIYers, a complete assembly is the more reliable choice.
Do I need to re-balance the driveshaft after replacement?
Not in most cases. As long as the driveshaft is reinstalled in its original phase, the existing balance is preserved. If vibration appears immediately after installation, check phase marks before suspecting balance.
Is a self-aligning bearing worth the extra price?
For stock vehicles driven daily, a fixed sealed bearing is usually sufficient. For lifted trucks, modified suspensions, or any application with non-factory driveline angles, a self-aligning bearing is a worthwhile upgrade.
Are premium brands always better?
Not always, but OE-supplier brands (ACDelco, National, Spicer) tend to have more consistent rubber compounds and tighter bearing tolerances. Aftermarket brands can be excellent value when they have substantial review history confirming fit and longevity.
Final Recommendations
For most drivers, the safest path is an OE-supplier sealed bearing with strong review volume. ACDelco Gold and National entries lead the list for a reason—they combine consistent quality with broad application coverage. For modified rigs or heavy-duty use, a self-aligning Spicer bearing offers real-world tolerance that fixed bearings cannot match. Application-specific listings for BMW, Ford F-150, Dodge Ram 1500, Lexus, Toyota, and Nissan models reward buyers who prioritize exact fit. Above all, confirm the OE part number, inspect the existing bracket, and respect driveline phasing during installation.
