10 Best Butt Terminals

Review Analysis Conclusion

Based on analysis of 105,200 reviews across the ten kits in this roundup, the strongest performers cluster around three traits: waterproof heat-shrink construction, color-coded multi-gauge coverage, and a clear, verifiable UL or marine-grade rating. Solder-seal and tinned-copper heat-shrink options dominate the top of the rankings because they repeatedly earn high marks for corrosion resistance and vibration survival. Mid-list vinyl-insulated picks hold up well in dry, interior applications but draw more criticism when users push them into outdoor or under-hood service. When comparing any two kits in this list, weight recent purchase velocity and long-term review consistency more heavily than headline star averages, since review volume here is large enough to expose batch-specific defects quickly.

Buying Guide

A butt terminal looks like a simple piece of metal and plastic, but the wrong one in the wrong place will loosen, corrode, or drop voltage within a season. Use the sections below to match connector type to environment, gauge, and tool setup before you commit to a kit.

Best For

• Marine bilge pumps, trailer light rewires, and boat electronics: marine-grade heat-shrink kits with tinned copper barrels and adhesive-lined tubing.
• Under-hood automotive repairs and off-road rigs exposed to splash and dust: dual-wall heat-shrink butt connectors with a strong recent review base.
• Quick household, stereo, and interior harness work: vinyl-insulated butt splices, ideally UL Listed, where moisture is not a concern.

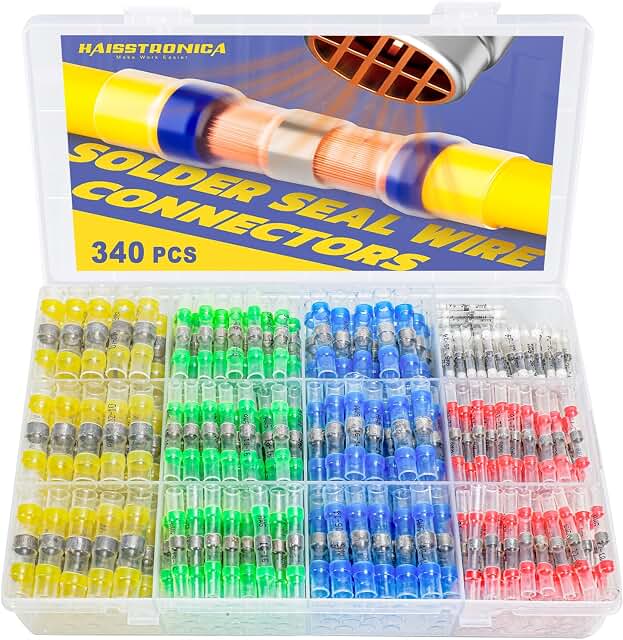

• High-vibration or hard-to-repair joints where you cannot easily re-crimp later: solder-seal connectors that bond conductor and insulation in one heated step.
• Mixed gauge projects across multiple vehicles: wide-range kits covering 22-10 AWG so you are not swapping assortments every weekend.

Avoid If

• You are working on battery cables or starter feeds; butt terminals are not a substitute for soldered or lugged high-amperage joints.
• The splice will sit in standing water or fuel; choose a true marine-grade heat-shrink or solder-seal connector instead of a basic vinyl sleeve.
• You only have pliers on hand; a proper ratcheting crimper is required for a gas-tight connection, and skipping it is the most common cause of failed splices.
• You cannot apply controlled heat; both heat-shrink and solder-seal types need a heat gun or low-flame torch to perform as rated.
• Your wire and barrel color codes do not match; never force a 12 AWG conductor into a red 22-16 AWG barrel and expect a reliable crimp.

Quick Comparison

Key Specs to Check

• Wire gauge range: confirm the kit covers exactly the conductors you use most. Color coding follows the convention of red 22-16 AWG, blue 16-14 AWG, and yellow 12-10 AWG.
• Barrel material: bare copper is fine indoors; tinned copper is worth the premium anywhere moisture or salt is present.
• Insulation wall: dual-wall adhesive-lined tubing outperforms single-wall polyolefin for sealing and strain relief.
• Certifications: a UL Listing on a vinyl-insulated connector signals baseline safety for residential and commercial wiring.
• Quantity per gauge: bulk packs in one color are cheaper per piece if you only need one size; mixed kits cost more but reduce shelf clutter.

Installation Notes

• Strip clean, flat copper with no nicked strands, and push the conductor all the way into the barrel so no bare wire is visible past the insulation.
• Use a ratcheting crimp tool matched to the terminal family; the indent should compress the barrel evenly without cutting through.
• For heat-shrink and solder-seal connectors, warm from the center outward so adhesive migrates to the wire entry points rather than pooling.
• Keep the heat source moving to avoid scorching the sleeve or melting nearby plastics.
• Tug-test every joint before closing up the harness; a correctly crimped terminal resists firm hand pressure.

Common Mistakes

• Stripping too much wire and letting bare copper extend past the insulation, which invites corrosion and short circuits.
• Reusing a crimped terminal; once deformed, the barrel cannot be trusted to seat a second time.
• Mixing heat-shrink terminals with a butane torch held too close, which burns the adhesive before it can flow.
• Choosing vinyl insulation for any location that sees road splash, condensation, or salt air.
• Trusting a high star average based on a small number of reviews when a slightly lower-rated competitor has thousands of consistent ratings.

FAQ

Do solder-seal connectors really outperform crimped heat-shrink ones? In vibration and moisture tests reported by users, solder-seal joints tend to hold up well because they bond the conductors and seal the insulation in one step, but installation is less forgiving. A properly crimped, adhesive-lined heat-shrink connector is the safer pick if you are still building confidence with a heat gun.

Can I mix heat-shrink butt terminals with regular crimpers? Yes, the crimp step is identical. The difference is the shrink step afterward; without heat, the sleeve will not seal and you will have a connector that behaves like an ordinary insulated butt splice.

Are UL Listed butt terminals required for home wiring? Local electrical codes vary, and many jurisdictions require listed connectors for residential circuits. Choosing a UL Listed vinyl or fully insulated kit is a simple way to stay on the safe side of inspection.

How long should a good butt splice last? In dry interior locations, a well-crimped connector can easily outlast the wire it joins. In marine or under-hood service, expect to inspect solder-seal and heat-shrink joints seasonally and replace any that show green crusting, white powder, or sleeve cracking.

Final Recommendation

For wet, salty, or high-vibration service, start with a marine-grade heat-shrink or solder-seal kit from the top of our rankings. For dry interior, household, and stereo work, a UL Listed vinyl-insulated kit delivers fast installs at the lowest cost per piece. If your bench covers multiple vehicles or projects, anchor your shop with a 22-10 AWG assortment and supplement with single-gauge bulk packs in the sizes you actually use most.
