10 Best Body Repair Paint Masking Tools

Review Analysis Conclusion

Based on analysis of 3,696 reviews, the ranking reflects a mix of high-volume pre-taped paper, steel masking stations with years of shop feedback, and silicone plug assortments that consistently survive bake cycles. Topping the list is a pre-taped masking paper with over a thousand reviews and strong recent purchase activity, signaling dependable adhesion for large panel work. Behind it, a tree-style steel station and a 160-piece high-temp plug kit anchor the middle of the list with proven track records in commercial settings. Lower-ranked picks include mobile dispensers and compact kits that are well suited to smaller shops but have thinner review histories, so buyers should weigh their features against individual workflow needs.

Buying Guide

Selecting the right body repair paint masking tools comes down to matching each category to the way your shop actually moves through prep. Because prep often takes longer than spraying, the efficiency of your masking station, the quality of your paper or film, and the reliability of your hole plugs all shape the final finish. The sections below break down what to look for when equipping a professional body shop or a home garage.

Sizing and Capacity

Masking paper machines are typically available in 18-inch and 36-inch widths.

• 18-inch machines are ideal for doors, fenders, mirror backs, and trim panels. They are lighter, easier to reposition between bays, and take up less floor space.
• 36-inch machines are better suited for hoods, roofs, and full-side coverage, accepting wider rolls that reduce the number of seams on large panels.

If your shop handles a mix of collision repair and custom work, decide whether a single wide-format machine or two dedicated units will keep prep moving without bottlenecking. Tree-style stations approach capacity differently, using vertical arms to hold multiple rolls of paper and tape at once. This layout helps painters switch quickly between narrow and wide paper, which is useful when a job moves from exterior panels to interior jambs. Before buying, measure the ceiling height and aisle width in your prep area to confirm the tree will not interfere with overhead lighting or open vehicle doors.

Feature Tradeoffs

Most mobile masking machines include casters, paper bars, tape rollers, and an integrated cutting blade. Tape roller counts usually range from two to four. More rollers allow you to keep several tape widths loaded at once, but they also widen the cart and can complicate reloading. If your shop relies on one or two tape sizes, a simpler machine may be easier to maintain and less prone to tangling.

Storage trays are another feature to weigh. Trays built into the frame hold blades, extra tape, or small fasteners within arm’s reach. In busy booths, however, trays can collect overspray and dust, so they need regular wiping. Some painters prefer a clean, minimal frame and store consumables on a separate cart to limit contamination risk.

Pre-taped masking paper combines paper or film with an adhesive edge, removing the step of hand-taping. The tradeoff is that pre-taped rolls are consumables rather than permanent equipment, so they favor shops that value speed over long-term hardware investment. For occasional DIY use, pre-taped paper is often the simplest entry point because it requires no dispenser at all.

Hole plugs and tapered stoppers serve a separate role. Silicone or rubber plugs mask threaded bores, sensor ports, and mounting holes during powder coating, media blasting, or wet painting. High-temperature silicone is essential when parts enter a bake cycle, while standard rubber may be enough for ambient-cure primer jobs. Assortment kits provide flexibility, while dedicated-size packs reduce sorting time once you know the dimensions you use most.

Best For

• High-volume collision shops: A 36-inch mobile masking machine plus a tree-style station handles large panels and quick roll changes without slowing the booth.

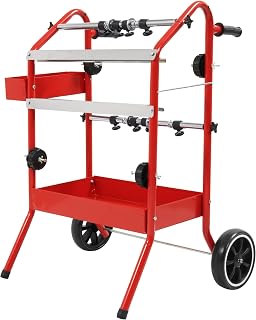

• Detail and custom painters: An 18-inch mobile masking machine is compact, maneuverable, and ideal for spot work and tight bays.
• Powder coating and e-coat operations: A high-temperature silicone plug assortment with tapered sizes covers most threaded bores and ports.
• DIY and hobby garages: Pre-taped masking paper delivers clean lines with no dispenser investment, and a smaller plug kit covers the odd masking job.
• Mobile detailing rigs: A compact 18-inch dispenser with storage trays keeps supplies organized in a small footprint.

Avoid If

• You only mask occasional touch-up panels: A full mobile masking machine may be overkill when pre-taped paper and a basic plug set will do.
• Your prep bay has low ceilings or narrow aisles: Tall tree-style stations can interfere with lighting and door swing.
• You run high-bake cycles consistently: Standard rubber plugs may deform or melt, so high-temperature silicone is the safer choice.
• Your shop relies on a single tape width: Multi-roller machines add complexity without much payoff.

Key Specs to Compare

Installation and Setup

Most mobile masking machines arrive partially assembled. Plan on attaching casters, paper bars, and tape rollers before first use. Level the unit on your shop floor so the paper pulls evenly; an uneven frame causes the roll to wander and tear at an angle. If the machine includes a cutting blade, adjust its tension according to the manufacturer guidelines. A blade that is too tight snags the paper, while a loose blade leaves ragged edges that let overspray creep underneath.

Tree-style stations may require bolt-together assembly for the vertical arms. Because these units are taller, check that the base is wide enough to prevent tipping when multiple large rolls are loaded at the top. Some technicians anchor the base to a weighted platform or bolt it to the floor if it will live in a fixed prep bay.

Pre-taped masking paper needs no installation, but storage matters. Keep rolls in a climate-controlled area so the adhesive edge does not dry out or collect dust. If the adhesive loses tack, the paper can lift during spraying and create a hard line or contamination in the finish.

Common Mistakes

• Skipping frame leveling: An unlevel machine produces angled tears and wasted paper.
• Overloading tape rollers: Loading widths you rarely use leads to tangled rolls and slow roll changes.
• Ignoring temperature ratings on plugs: A plug that softens during bake cycles can leak coating into threaded bores.
• Letting overspray build up on the frame: Flaking overspray can fall onto fresh panels and ruin the finish.
• Storing pre-taped paper in a hot or dusty area: Heat and dust both reduce adhesive performance.
• Using dull blades: Ragged cuts create gaps that allow overspray bleed.

Maintenance and Longevity

Steel masking machines benefit from periodic cleaning. Wipe the unit down with a degreaser during regular shop cleanings to prevent overspray from flaking onto fresh panels. Lubricate caster wheels monthly to avoid flat spots when the cart sits in one place for long stretches. Check the cutting blade for nicks; a damaged blade should be replaced rather than sharpened, because most replacement blades are inexpensive and designed to swap out quickly.

Silicone plugs are reusable, but they should be inspected for tears or deformation after each cycle. A plug with a split skirt will leak coating media into the threaded hole and create cleanup work later. Wash plugs in mild solvent after use, let them dry fully, and store them in a divided case so sizes stay organized.

Reliability Signals

Review count and rating consistency are strong indicators of real-world durability. A masking machine with several hundred reviews and a multi-year sales history has usually survived the wear patterns of daily shop life. Newer products with perfect five-star ratings but only a handful of reviews are harder to judge; the sample may simply be too small to reveal design flaws.

Pay attention to feedback about frame flex, caster quality, and blade sharpness, since these components tend to fail first under shop conditions. For plug kits, look for comments about size accuracy and heat resistance. If multiple reviewers mention that a plug melted during powder coating, the material rating may not match the advertised tolerance.

How to Compare Reviews

Start by filtering for reviews that mention your intended use case. A masking machine praised by furniture refinishers may not see the same chemical exposure as one used in an automotive clear-coat booth. Look for photos that show the unit loaded with full-size rolls, which reveal whether the frame sags under weight. For pre-taped paper, check reviews that discuss adhesion on curved panels versus flat surfaces, because body lines and wheel arches place more stress on the tape bond.

Recent reviews carry more weight than older ones because they reflect the current manufacturing batch. If a product had quality issues two years ago but recent feedback is consistently positive, the manufacturer may have addressed the problem. Conversely, a sudden drop in rating over the last six months can signal a material or supplier change.

FAQ

What width masking machine should I choose? An 18-inch machine is the most versatile for typical collision repair and detail work. A 36-inch machine is worth the extra footprint if you regularly mask hoods, roofs, or full sides.

Can silicone plugs be reused? Yes, most silicone plugs are designed for repeated bake cycles. Inspect them for tears or deformation after each use and replace any that show damage.

Do I need a tree-style station if I already have a mobile masking machine? Not necessarily. Tree-style stations help if you frequently switch between multiple paper and tape widths and want everything visible at once. Smaller shops often get by with a single mobile machine.

Is pre-taped paper worth it for a home garage? For occasional projects, pre-taped paper is usually the simplest option because it requires no dispenser and produces clean lines with minimal setup.

How do I know if a plug kit will survive my bake cycle? Check the listed temperature rating and compare it to your oven or booth settings. Reading user feedback on powder coating or e-coat use is the fastest way to confirm real-world performance.

Final Recommendation

If you need a single versatile solution for high-volume prep, a mobile multi-roll masking machine in the 18-inch or 36-inch range will form the backbone of your workflow. Choose the 36-inch width for large panels and collision repair, or the 18-inch width for detail work and smaller bays. Add a tree-style station only if you frequently switch between multiple paper and tape sizes and have the floor space to accommodate it.

For shops that prioritize speed over hardware investment, pre-taped masking paper is the most efficient consumable. It removes the need to align tape by hand and reduces the chance of adhesive lines showing through the finish. Pair your paper system with a quality plug kit so that holes, ports, and threaded bosses stay clean during every stage of refinishing. Matching each tool category to your typical job mix keeps paint where it belongs and protects everything else.
