Choosing the best arbor presses for your workshop means balancing tonnage, throat depth, and mechanical advantage against real-world reliability. Whether you need a compact half-ton unit for jewelry and leatherwork or a heavier one-ton model for metal forming and bearing installation, the right manual press should deliver smooth, repeatable force without flexing or drifting. The picks below include cast iron desktop models, ratchet-leverage designs for extra control, and specialty presses for DIY fabrication, all evaluated on verified ratings, review volume, and practical features.
We evaluated each candidate on relevance to the arbor press category, concrete specifications stated in the title (tonnage, maximum height, material, and drive type), average star rating, total review count, recent purchase velocity, and overall value. Products with stronger feature descriptions, higher buyer engagement, and consistent owner feedback received higher compound scores. Items that are accessories rather than complete presses, or that belong to different tool categories, were deprioritized.
Top-rated Comparison
A well-rounded one-ton cast iron press with a tall 5.9-inch working height and strong owner feedback for general stamping and forming.
Compact half-ton VEVOR press that shares the same robust review history as its larger sibling in a smaller footprint.
KAKA Industrial half-ton unit with a welded steel plate body and adjustable height up to 3.5 inches for portable shop use.
One-ton ratchet leverage press with a handwheel for incremental, controlled pressure on demanding forming jobs.
Straightforward half-ton cast iron desktop punch press built for repetitive riveting and hole punching.
Ductile iron base round-head press focused on leather punching, small parts cutting, and light forming.
One-ton cast iron press that pairs a handwheel with a 5.5-inch height for detailed bending and stretching work.

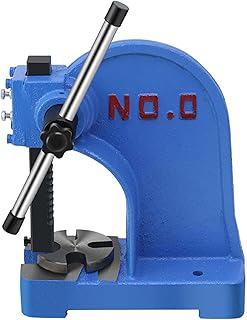

Half-ton cast iron press with a perfect owner rating and a 4.48-inch work height for focused stamping tasks.
Three-ton ratchet press with a 12.2-inch maximum height for users who need substantially more force and clearance.
JET half-ton arbor press with a compact gray finish and a long track record in light industrial and home shops.
Based on analysis of 1,359 reviews across the ten ranked arbor presses, a few patterns stand out. Cast iron models from established brands dominate the top of the list, and the highest-scoring units combine a one-ton rating with at least five inches of working height and a deep review base. Half-ton presses perform well for precision and craft work, while three-ton ratchet models earn their place when users need extra force and clearance. Reviewers consistently praise machines that arrive flat, hold alignment under load, and ship with a handle that does not loosen after repeated strokes. Common complaints involve thin bases that need shimming, stiff racks that improve after lubrication, and limited throat depth on compact units. When comparing options, weight the volume and specificity of owner feedback as heavily as the headline tonnage, since long-term reliability is what separates a bench fixture from a recurring frustration.
Choosing among the best arbor presses starts with understanding how you will use the tool. A manual arbor press is a benchtop machine that uses a rack-and-pinion or ratchet drive to generate concentrated downward force for stamping, bending, punching, pressing bearings, and light forming. Because these tools are purely mechanical, their usability depends on capacity, working height, body construction, and the type of leverage system they employ.
Arbor presses are typically sold by tonnage. Common sizes include half-ton, one-ton, and three-ton models. The right capacity depends on the material thickness and the type of work you do most often.
A half-ton press is usually sufficient for leatherwork, jewelry making, model assembly, and light riveting. These units are compact, easy to position on a crowded bench, and require less clearance above the work surface. If your tasks involve punching thin metal, installing small bearings, or stamping soft materials, a half-ton machine will generally deliver enough force without overwhelming the workpiece.
One-ton presses represent the sweet spot for many home shops and small fabrication studios. They can handle thicker stock, deeper dies, and tougher materials while still fitting on a standard workbench. If you plan to swap between stamping, bending, and occasional light forming, a one-ton model offers the versatility most users need.
Three-ton presses step into heavier territory. They require more bench space, more overhead clearance, and often a ratchet mechanism so the operator can manage the higher load. These are appropriate for users who regularly work with thicker steel, larger bearings, or deep-draw forming operations. Keep in mind that higher tonnage also means slower, more deliberate strokes, so a three-ton press can feel like overkill for delicate craft work.
Maximum working height determines how tall a die or fixture can be while still allowing the ram to make contact. If you use custom tooling, jigs, or deep relief dies, look for a press with at least five inches of clearance. Some models reach nearly six inches or more, which makes setup easier and reduces the need for spacer blocks. However, taller presses can introduce more flex if the column is not well machined, so rigidity matters as much as raw height.
Throat depth, though not always listed in titles, affects how far you can position a workpiece from the center column. Deeper throats are useful for sheet-metal work or when you need to reach into a larger assembly. If the product description does not specify throat depth, owner reviews often mention whether the press accommodates odd-shaped parts.
Most arbor presses use a direct rack-and-pinion drive. The operator pulls a lever, the pinion turns the rack, and the ram descends in a single motion. This design is fast, simple, and easy to maintain. It works well for repetitive tasks where speed matters more than extreme precision.
Ratchet-style presses add a pawl-and-ratchet system that lets the ram advance in small increments. A handwheel or secondary lever controls the feed, giving you finer control over how much pressure is applied and where. This is especially useful when you are pressing bearings into a bore, forming a gradual bend, or using a die that must align perfectly before the full load is applied. The tradeoff is speed: ratchet presses take longer per cycle and usually cost more.
Cast iron is the traditional choice for arbor press bodies. It provides excellent vibration damping and holds machined surfaces stable over time. Most benchtop models use cast iron for the base and column, which keeps the ram traveling in a straight line.
Some newer or lighter-duty models use welded steel plate. Steel can be lighter and more resistant to certain types of impact, but it may transmit more vibration into the bench. For heavy forming or repeated punching, a thick cast iron base is generally preferable. Ductile iron, occasionally used in specialty presses, offers a middle ground: it is less brittle than gray cast iron and handles shock loads well.
Before buying, verify that your workbench can support the press and the forces you will apply. A half-ton press might weigh thirty to fifty pounds, while a three-ton unit can exceed a hundred pounds. Bolting the press to the bench is highly recommended, especially for ratchet models where you will apply torque in stages. Some bases come with pre-drilled mounting holes; if not, owner reviews often note whether the base is flat enough to drill safely.
You will also need to think about tooling. Arbor presses do not include punches or dies unless the title explicitly states so. Standard tooling attaches to the ram via a simple hole or collar, but diameters vary. Check whether the press uses a common shaft size so you can source attachments without custom machining.
Manual arbor presses have few moving parts, which makes them easy to maintain. Keep the rack and pinion clean and lightly lubricated with a heavy-duty grease. If the press develops slop in the ram over time, adjustment nuts or shims may be available to take up wear. Cast iron bodies rarely fail, but painted surfaces can chip if dies are struck off-center. A simple drip tray or rubber mat beneath the press protects both the tool and your bench.
Reliability signals in listings include a high number of detailed reviews mentioning consistent performance over months or years. Be cautious of products with very few reviews or a sudden drop in average rating, as these may indicate batch-quality issues or misaligned machining. Photos in user reviews are especially helpful for checking casting quality, paint finish, and whether the ram travels true.
When reading feedback, look beyond the star average. Focus on reviews that describe the exact task you plan to perform. A five-star review from a jewelry maker using light pressure may not predict how the press will perform when punching steel. Conversely, a three-star review complaining about stiffness might come from a user who did not lubricate the machine before first use.
Pay attention to comments about base flatness, ram wobble, and handle length. These details reveal machining quality more accurately than marketing copy. If multiple reviewers mention that the press needed shimming or that the handle bolt loosened, factor that into your decision.
| Spec | Why It Matters | Typical Range |
|---|---|---|
| Tonnage | Sets the upper limit of forming force | 0.5 to 3 tons |
| Max working height | Determines die and fixture clearance | 3.5 to 12.2 inches |
| Body material | Affects rigidity and vibration damping | Cast iron, ductile iron, welded steel |
| Drive type | Controls speed and precision of the stroke | Rack-and-pinion or ratchet |
| Base mounting | Keeps the press stable under load | Pre-drilled holes or flat-drillable base |
| Weight | Indicates overall rigidity and bench demand | 30 to 150+ pounds |
What is the difference between an arbor press and a hydraulic press? An arbor press is fully manual and uses a rack-and-pinion or ratchet to drive the ram. A hydraulic press uses fluid pressure for higher, more consistent force. Arbor presses are simpler, cheaper, and ideal for light to medium work.
Can a half-ton arbor press install bearings? Yes, for small to medium bearings on shafts and in bores. For larger automotive or industrial bearings, a one-ton or three-ton press is a safer choice.
Do arbor presses come with tooling? Most do not. Punches, dies, and bearing drivers are usually sold separately, and shaft sizes vary by model.
How much bench space do I need? Allow room for the press footprint plus several inches of clearance on each side for handle travel and workpiece positioning. A three-ton press also needs overhead clearance for its taller column.
Is cast iron better than welded steel? For most benchtop work, cast iron dampens vibration better and holds alignment longer. Welded steel can be lighter and is acceptable for lighter-duty or portable setups.
If you need a single benchtop press for a mix of stamping, bending, and light metalwork, prioritize a one-ton cast iron model with at least five inches of working height and a substantial review history. These units offer the best balance of force, clearance, and proven reliability. For dedicated leatherwork, jewelry, or hobby assembly, a half-ton press from an established brand will save space and still deliver the precision you need. If your work regularly involves thick material or large bearings, step up to a three-ton ratchet press, but verify that your bench and workflow can accommodate its size and slower operation. Match the press to your most common task first, then use the ranked highlights above to find the model that fits your budget and bench space.
